Description
- Resolution: 2MP
- TV System: NTSC,PAL
- PCS of Camera: 1pcs
- Cable Length: None
- Brand Name: HSmart HD
- Origin: Mainland China
- Smart home platform: Other
- Support: Android,IOS: Wireless Standard: 2.4Ghz WiFi IEEE 802.11b/g/n
- APP:KingfisherPro: Mobile Phone Memory: Yes
- SD TF Card:: Max. 256GB (not included)
- WIFI DVR Video input :: AHD,720P/1080P,PAL/NSTC
- Support to Preset :: Motion Detection
Mini WiFi DVR HD system add Camera included (multiple styles optional)
Product Features:
WIFI-DVR is a mini recorder which support a AHD camera (max 1080P) and to make a small monitoring system.
It support a 128GB TF card Not included
local and remote monitoring of mobile phones and computer.
★Super mini size；
★1080P, 30 frame per second, full real-time smooth HD monitoring；
★H. 265 video decoding and coding, clearer picture, less storage space, low code rate and smoother remote video；
★WiFi remote real-time monitoring, playback and download Video
★Support WIFI hotspot connection
★Support AHD camera of 720P / 1080P, PAL/NTSC
★Built-in large capacity battery
★With mobile APP and computer client software；
★High-level encryption technology and independent password to ensure the security of monitoring data；
★Support standard ONVIF Protocol and RTSP protocol
DVR KIT Parameter:
Model WIFI DVR
Processor system Linux
Video coding and decoding Defaulted:H.265, H.264/H.265 Optional
Video input AHD, 720P/1080P, PAL/NSTC
Fully recognized automatically"
Video:1920*1080 or 1280*720
Video rate "Optional；
Compression format : H.265
Video frame rate 30 fps/25 fps
Video recording resolution 1080P/720P，Default main stream recording，Optional.
Audio coding and decoding G711A
Memory card Up to 128GB TF Card Not included
Video motion detection Support,trigger recording for 3 minutes
Onvif Support
rtsp Support
WIFI frequency 2.4G
Power input DC5V 2A
DVR size 53.5*45*18.5mm（±2mm)

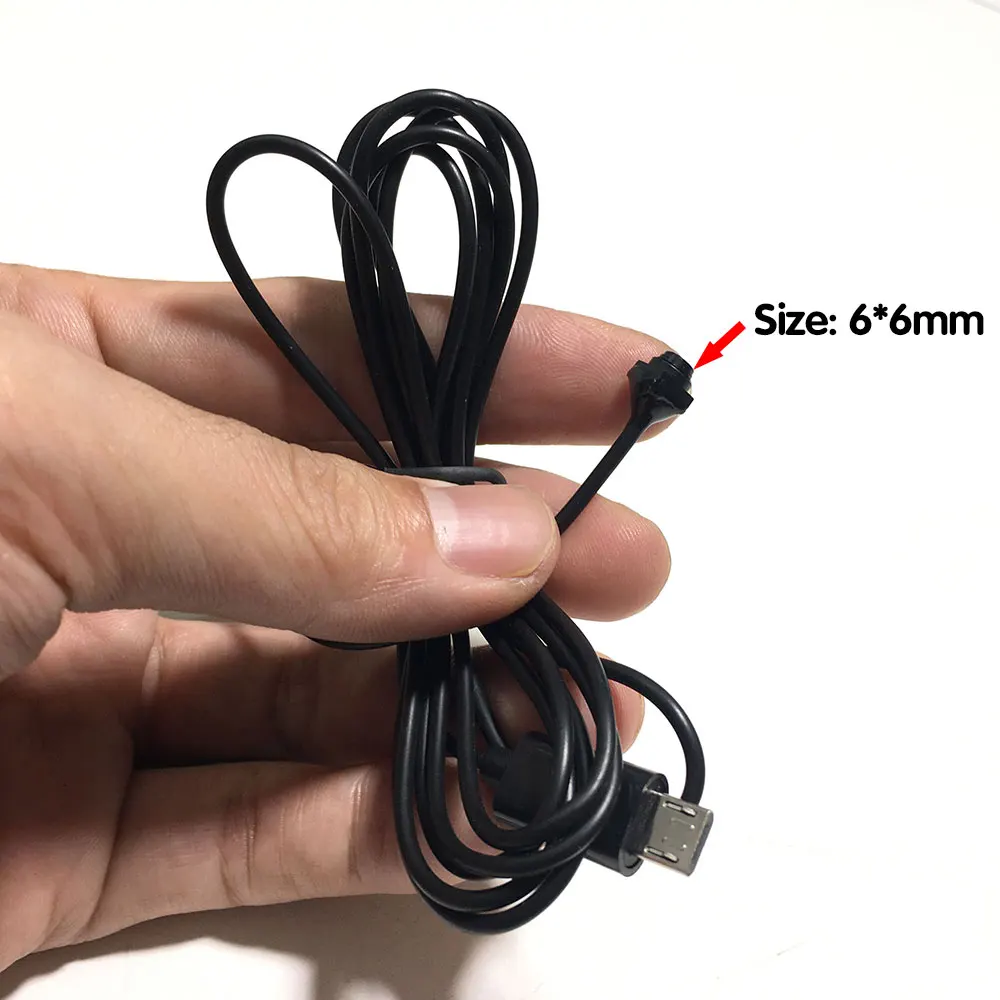

Camera Parameter:
Model AHD 720P/1080P CAMER (optional)
Pixel: 1.0MP / 2.0MP
Resolution: 1280*720P/1920 * 1080P
Lens: button/pinhole/wide angle (optional)
Illumination: 0.1LUX
Size: 15*15mm (±1mm)
Cable length: 1M
Tips:
1. MINI Camera will create more heat and the case of this camera is small, so after you operate the camera for a while, you will feel the camera is hot. And do not worry, it is normal and safe.
2.Our WIFI DVR can only be adapted to the camera of our set, and other cameras cannot be used.
3.Products include:
1*WIFI DVR 1* Camera 1*Manual
The listening effect is clear and the voice evidence is saved.
The sound restoration degree is real. and the detail sound recording is clear. Help you record important sound evidence
1080p full glass hd lens,showing more details
powerful 1080P image processing chip and 2 million pixel
high-definition picture quality makes the imaging picture become more delicate
asy to install , Multi-platform View
Support multiple users online to check video at the same time and supports IOS android,ipad view,Intelligent alerts from your security camera will be sent to your PC or smartphone via (KingfisherPro) app. Comes with CMS (Video Management Softwware), and records events as soon as they happen and store them on Micro SD Card.
User sharing Support multi-user real time sharging
The main account can add multiple sub accounts to view videos and the whole family can add them ,support multiple accounts to watch online at the same time
Support 4 Kinds of Video Definitions
● The listening effect is clear and the voice evidence is saved.
● The sound restoration degree is real. and the detail sound recording is clear. Help you record important sound evidence
h.265 coding technology reviews fluently and saves room
the new generation of h.265 encoding technology,while ensuring high-definition
pictures,greatly reduces the storage space and broadband occupied by the video,the
transmission speed is faster,the video is clearer,and the storage space is greatly saved,
compared with the previous generation h.264 encoded data,the data quality is improvedby
35% ,and the seorage space is reduced by 50%

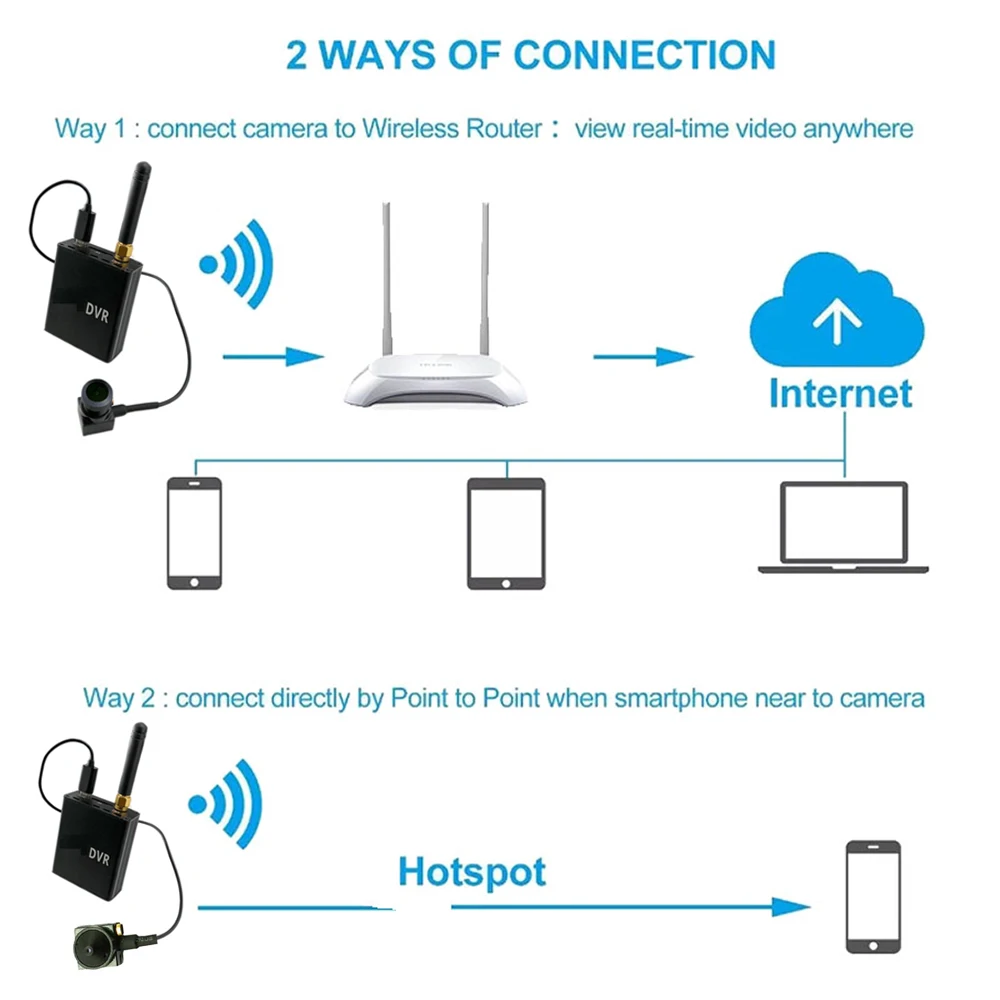

P2P Remote Access/Multi-User
Share the same Vision with your families , let all of you protect and pay more attention to your house.
P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet .
Easy to install, three steps in place APP download (Android) Search "KingfisherPro" in android market or scan the QR code to download. (iOS) Search "KingfisherPro" in the App Store or scan the QR code to download.
