Description
- Quantity: 1 pcs
- Wheelbase: Screws
- Size: 10'' 420mm
- Technical parameters: Value 2
- Model Number: XL10 V6
- For Vehicle Type: Airplanes
- RC Parts & Accs: Principal Axis
- Material: Carbon Fiber
- Brand Name: PHISITAL
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys
- Tool Supplies: Carbon Frame
The main advantages of the XL series V6 are in the flight performance, and the stronger and thick arms. The XL series V6 frames fly balanced because of the true X configuration and wide stance. These main changings make flight stable in the air.
Features:
1.Comaptibel with D JI O3 Air Unit/ CADDX Vista/BLITZ Whoop 1.6W VTX;
2. Full 3K Carbon Fiber airframe,the material is light and strong,hardness and toughness;
3.Popular True-X configuration,the flight is flexible and durable;
4.The Max. payload can achieve 1.5-2.5kg using iflight Xing2 3110 motor;

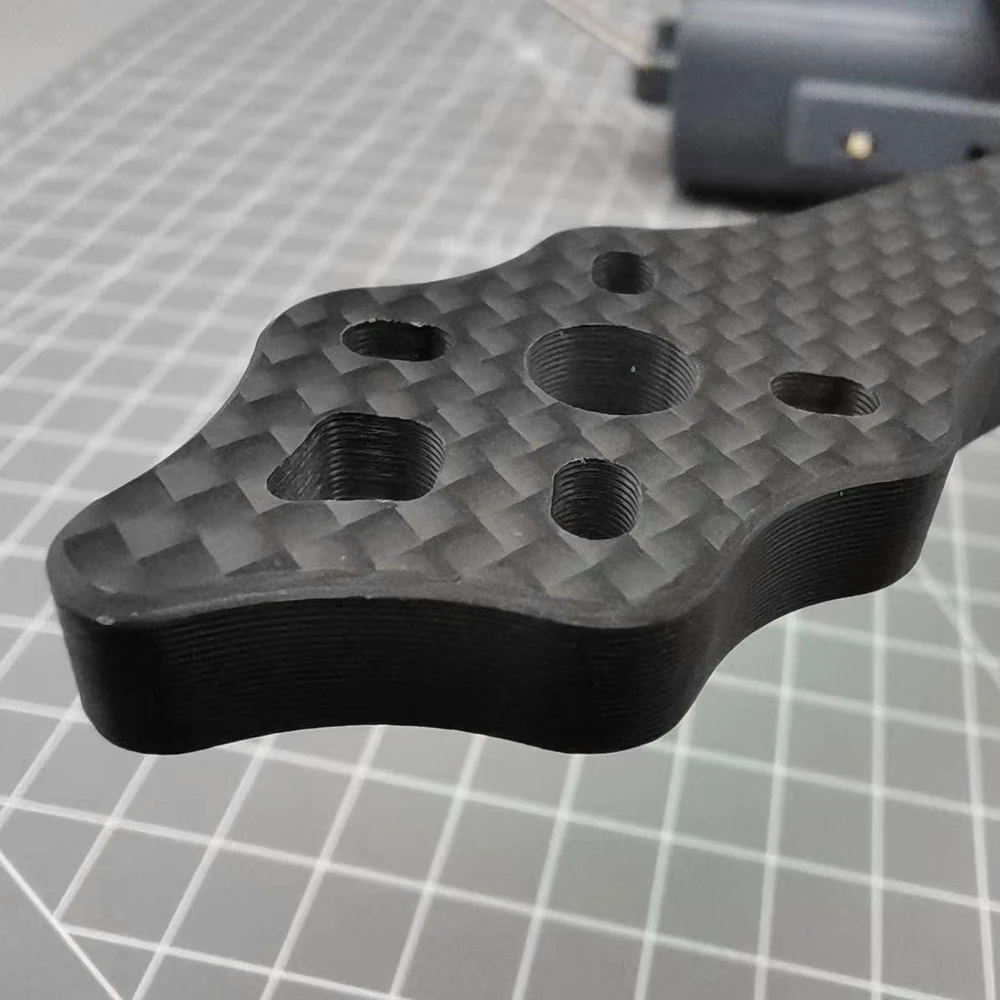

5.7MM arm,the drone is more stable and tough;
Specifications:
Model: XL10 V6
Product Name:420mm Wheelbase 10 inch Frame Kit
Wheelbase: 420mm
Frame Dimension:297x297x35mm( LxWxH)
Arm Thickness: 7mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 3mm
Upper Plate Thickness: 3mm
Motor Mounting:16x16mm/19x19mm
VTX Mounting:20*20 Φ2mm/ 25.5*25.5 Φ2mm/ 30.5*30.5 Φ3mm FC Mounting:20*20 Φ3mm/30.5*30.5 Φ3mm Weight: 280g
Packing List:
1x XL10 V6 Frame
1x Screw Bag
1x Battery anti-slip mat
1x XT60/antenna mount
