Description
- Video Input: 32 Channel
- Resolution: 4MP
- TV System: NTSC,PAL
- PCS of Camera: 16pcs
- Cable Length: None
- Model Number: 7932K-608GP-AI-40
- Brand Name: Techage
- Origin: Mainland China
- Smart home platform: Other
- IP NVR: H.265 32CH 8MP NVR
- 4MP POE Camera: 2560*1440px
- Camera Features: Metal Case, Indoor Outdoor Waterproof
- Camera Lens: 3.6mm default
- Alarm System: Motion Detection + Email Alert +APP Push
- Mobile Phone Viewing: Yes via XMEYE Pro APP
- Hard Disk Drive (HDD): 2*SATA Port (support up to 14TB)
- Language: Support Multi language(English,Spanish,Russian etc.)
- Advantage 1: 2 White Lights + 2 Infrared Lights
- AI Camera: Face Human Body Motion Detection
- Two-way Audio Camera: Bulit in Microphone and Speaker
Product Information:
New Upgrade:
* All Cameras Are Built-In Microphone And Speaker, Support Two-Way Audio Recording.
* Human Detection : Only Detected Human Movement, Reduce False Alarm Messages.
* Customized Voice Alarm: Reasonably Customize The Alarm Area You Want, Voice Alert.
* Double Light Night Vision:The Camera Can Be Set To Full Color Night Vision Like Day Vision.
* The AI Camera Support IP66 Waterproof.
Package Include:
1 x H.265 32CH 8MP IP NVR
16/24/32 x 4MP Poe Cameras With Two-Way Audio
1/2 x 16CH POE Switch
1 x Power Supply For NVR
1 x USB Mouse For NVR
1 x User Manual
2 x Warning Sticker ( Gift )
16/24/32 x Waterproof Connector For Cable (Gift)
1 X Remote Control (No Battery)
No HDD Or 3Tb/4TB HDD For Optional
Note : Don't Include Network Cables for Cameras.
32CH POE NVR + 16 Cameras / 32CH POE NVR + 24 Cameras/ 32CH POE NVR + 32 Cameras For Optional
Real-time Two-way Audio Communication
Camera Has Built In Microphone And Speaker,
Never Miss a Moment With Your Family.
Smart Ai Motion Detection & Human Detection
When It Motion Detect , The 2pcs White Leds Will Light,Serve As a Warning Deterrent.
9 Kinds Alarm Sound for Option ( Only Support English Sound )
When Someone Breaks Into Shooting Area,
The Camera Will Make Alarm Sound Alarm Messages Will Be Pushed To Your Phone App.
Intelligent Identification Alarm
Only When Someone Pass The Alarm Area , The Camera Will Send Alarm Message , Increase Alarm Accuracy.
Face Record/Face Detection/Face Playback
Record Every Face That Appears On The Lens, Without Missing Any Details.
Video With Smart Playback
Smart Playback Available With Customizable Searching Area,
Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.
Smart IR-Cut Night Vision
When The 2 White Leds Lighting, The Camera Will Show Colorful Vision At Night,
There Are Three Night Modes For You To Select.
Support 4MP HD Display
Show Higher-Quality Images, With Better Experience.
H.265 POE CCTV System
H.265 More Clear , Hd Resolution Offer You Best Image Quality In a Lower Bit Rate.
Save More Storage Space,Can Reduce 40%-50% File Size,Save Your Hdd Storage Space And Reduce Your Purchase Cost.
POE Advantage, Why Choose POE ?
Don't Need Extra Power Cables or Adapters or Switch.Plug And Play And Easy Setup.
Save Money And Convenient, POE NVR = NVR + POE Switch
Max Support 100 Meters Cables Transmission Distance
Which Greatly Increases Home Installation Convenience.

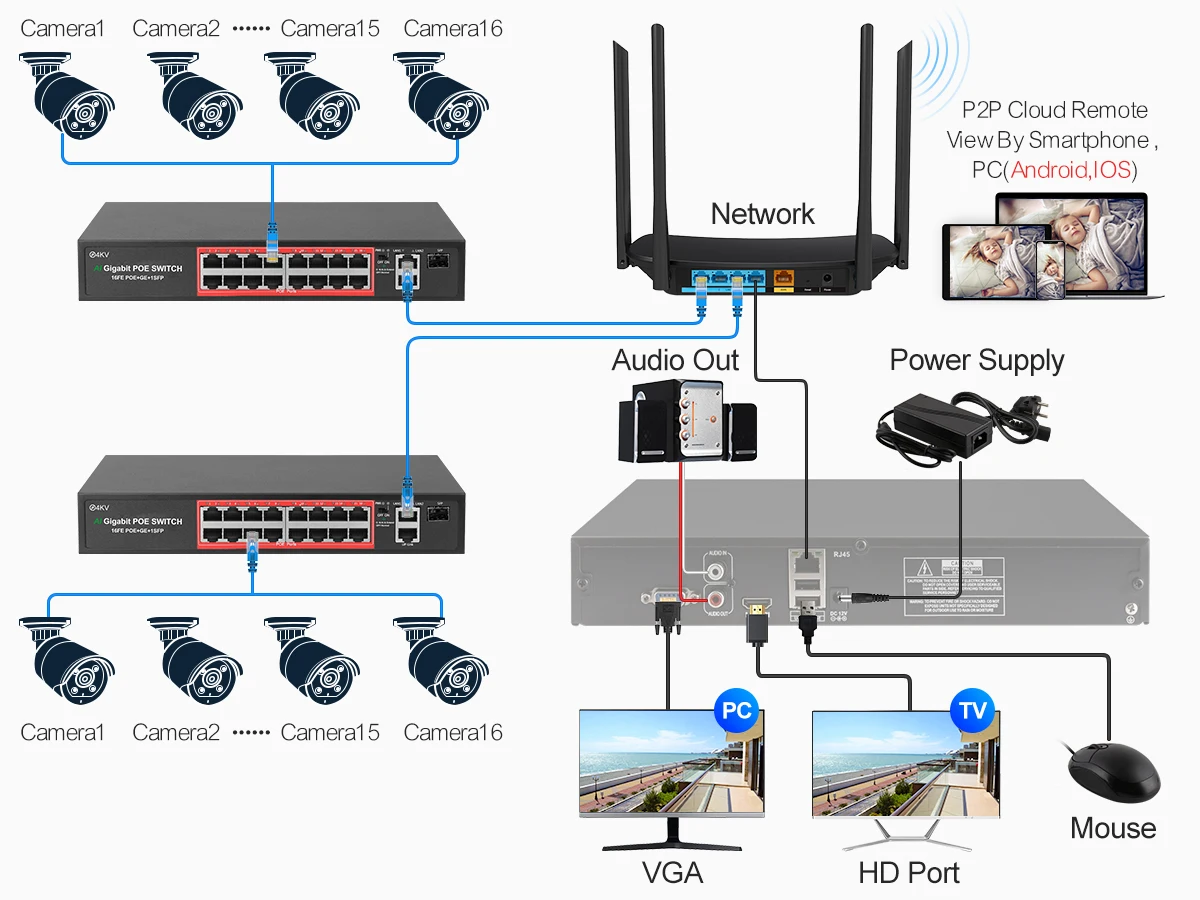

Install and Connect it
It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.
Don't need extra power cables or adapters or switch.
Our NVR Support Up To 14TB HDD
IP66 Waterproof Security Camera
Our Camera All Can Suit For Both Outdoor And Indoor Usage.
Remote Access Anytime, Anywhere
Based On P2P (Peer To Peer) Technology, Support Plug-And-Play Installation.
Access The Ip Camera Through Its Web Interface Via Internet Explorer,
Also Comes With a Free Smartphone App (Android & Iphone) For Remotely View From Anywhere.
Support IOS And Android Device Access. Scan QR-Code To Login. Download Free App In Apple App Store / Google Play.
4K 32CH NVR Specifications:
Main processor:Hi3536C
Operating System:Embedded Linux
System resources:Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface
Operator interface:16-bit true color graphic menu operation interface, support mouse operation
Preview:1/4/9/16/32
Video
Video input (IP):32CH 4K
Access bandwidth:300Mbps
Forwarding bandwidth:240Mbps
Video compression:H.265/H.264
Display quality Max:4K
Playback quality:4K/5M/1080P
Decode:1*4K/2*5M/4*1080P
Motion detection:Support(depend on camera)
Audio
Audio compression:G.711A
Intercom:support
Record&playback
Recording mode:Manual>Alarm>Dynamic Detection>Timing
Local payback:1*4K/2*5M/4*1080P
Search mode:Search by Time/Calendar/Event/Channel
Record storage:HDD、Network
Backup mode:Network backup, USB hard disk, USB burner, SATA burner
External interface
Video output:1ch VGA，1ch HDMI HD output
Audio I/O:1/1
Alarm I/O:0/0
Network interface:1*RJ45 10M/100M/1000M Adaptive Ethernet port
USB interface:2*USB2.0 ports
HDD:1 SATA(Up to 8TB for each disk)
ESATA:No
Serial interface:No
Other
Power supply:12V/2A
Power Consumption:<10W(Without HDD)
Work environment:Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
Weight:2.6kg
H.265 4MP Camera
Effective Pixel: 4MP 2560*1440
Min Illumination: 0.01Lux@(F1.2,AGC ON), 0.001 Lux with IR
Camera Lens: 3.6mm Lens
