Description
- Model Number: XK-F203
- Brand Name: XINGKAITECH
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: Xingkaitech, XINGKAITECH
- Model Number: XK-F203
- color: Black
- Origin: Mainland China
|
Product Name
|
XK-F203
|
|
Function
|

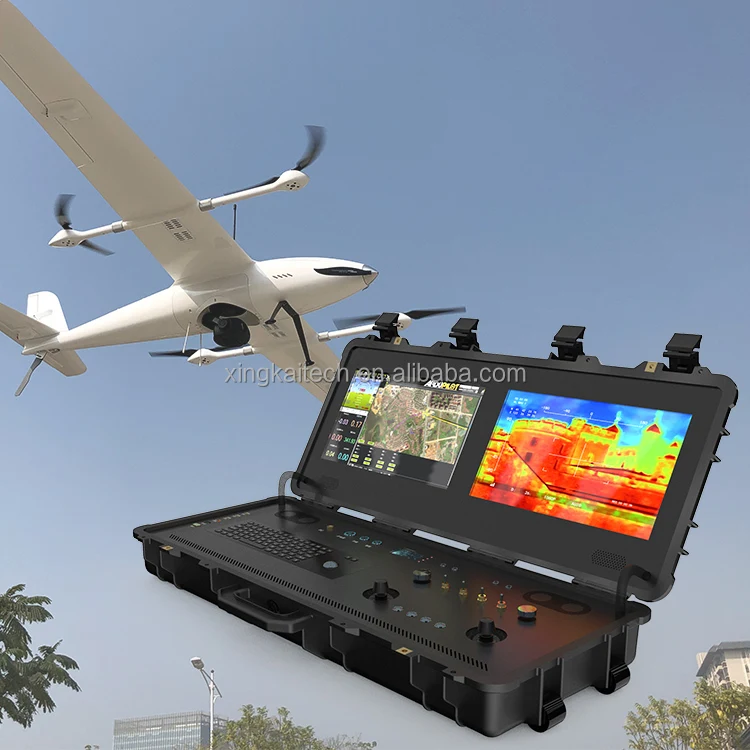

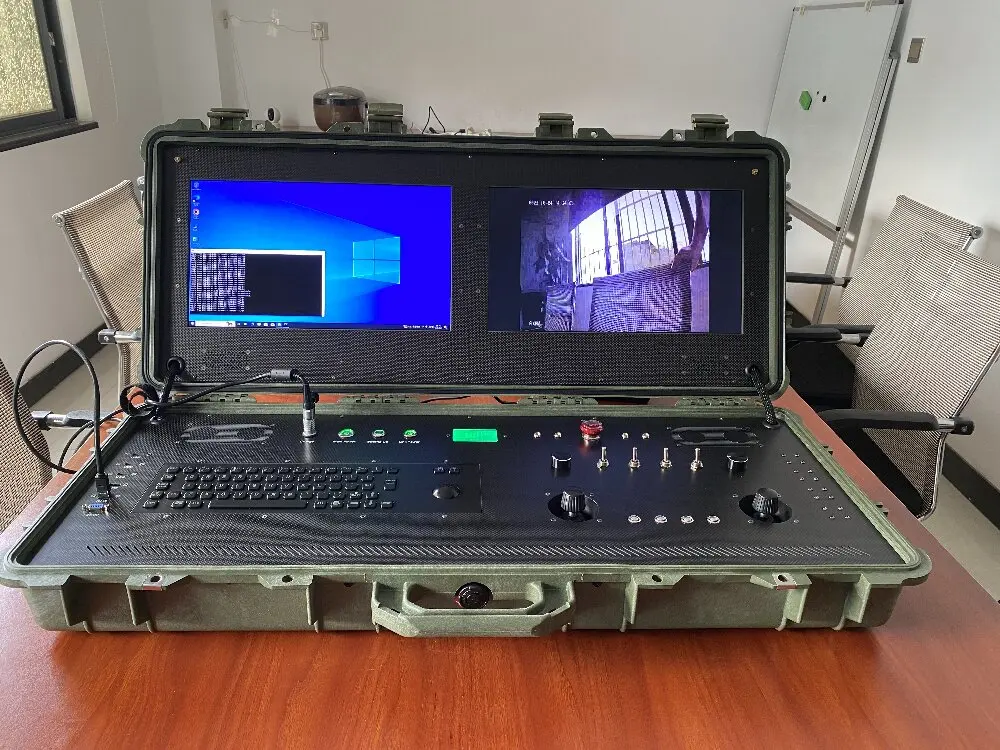

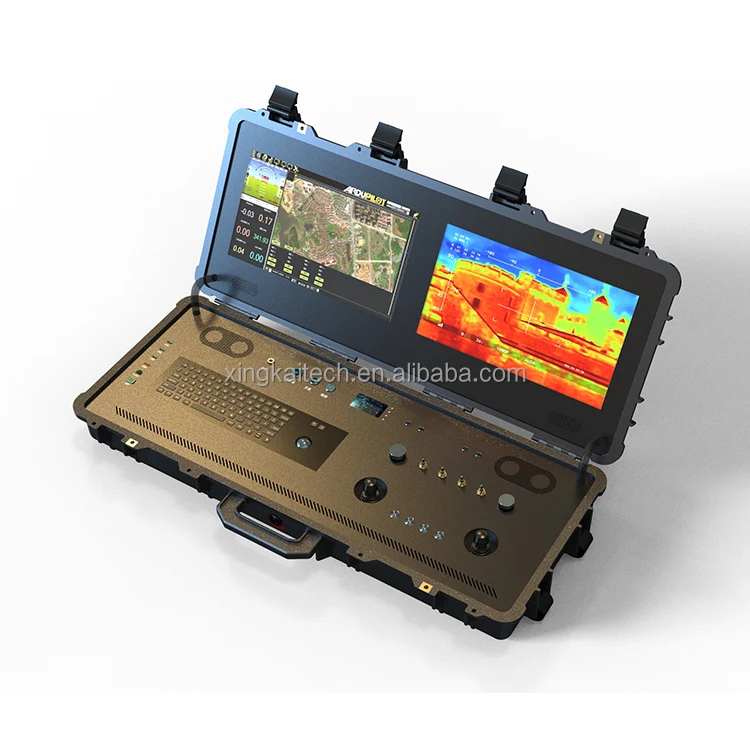

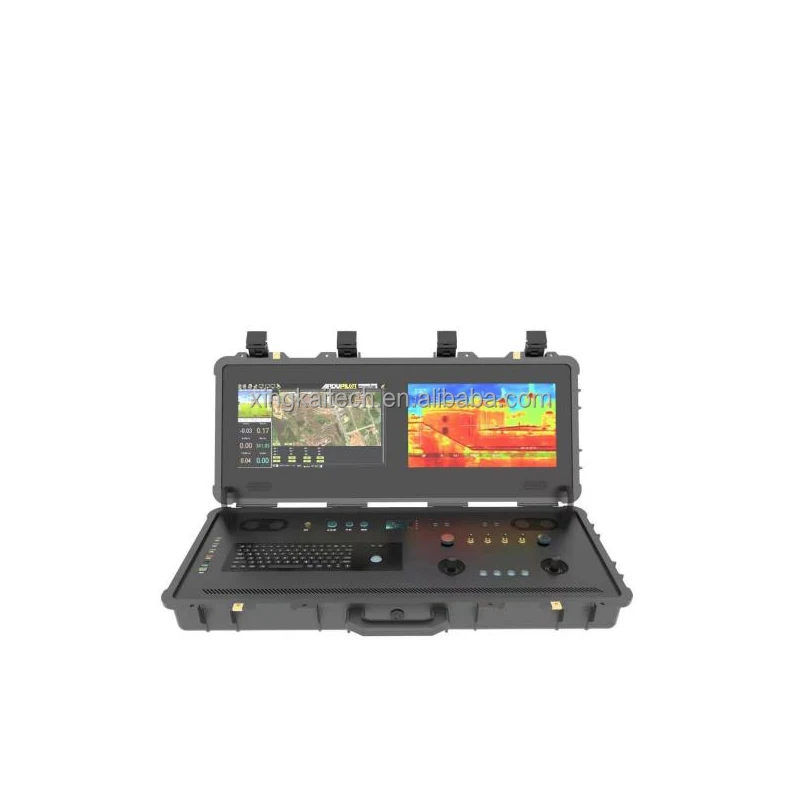

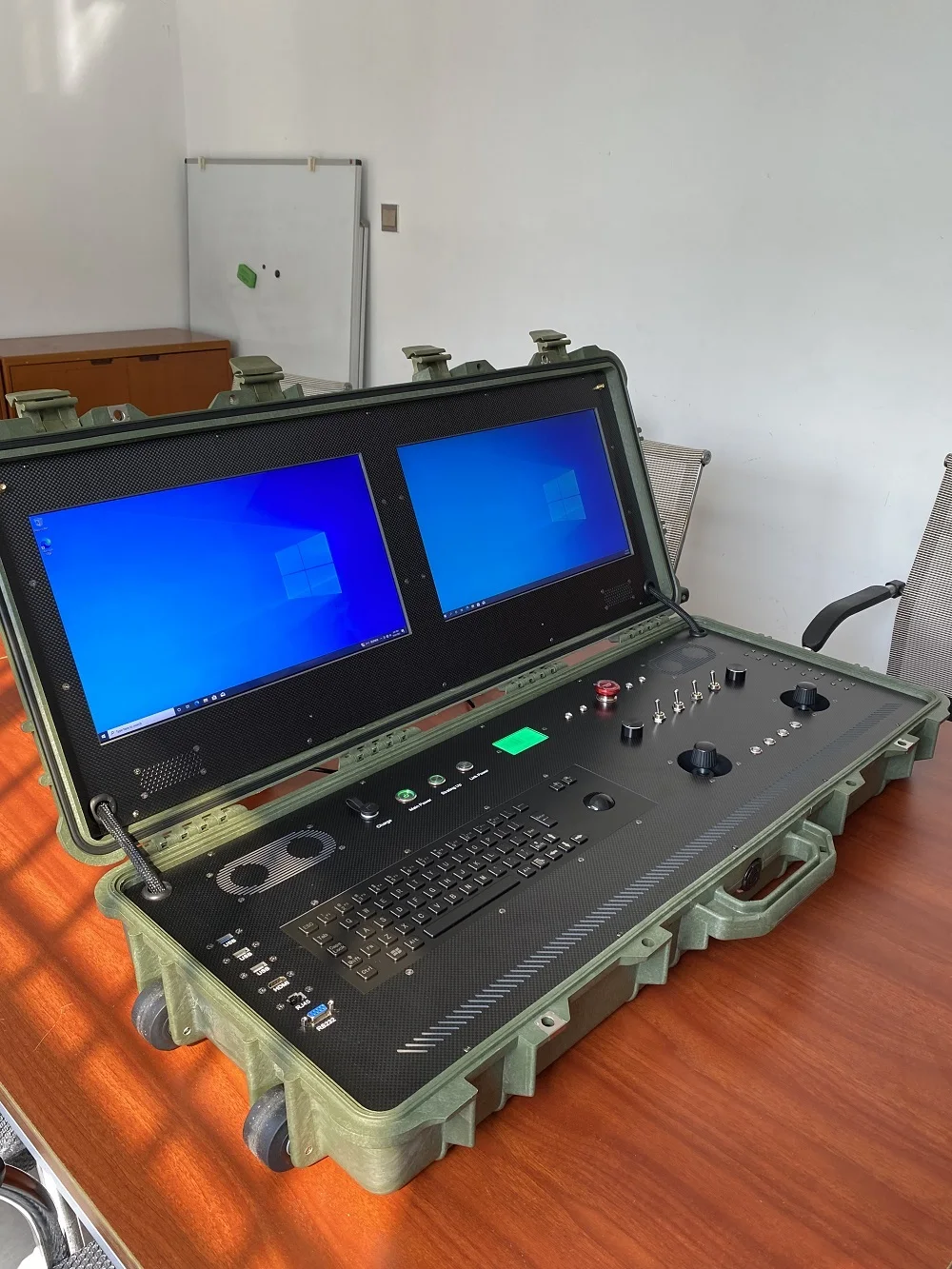

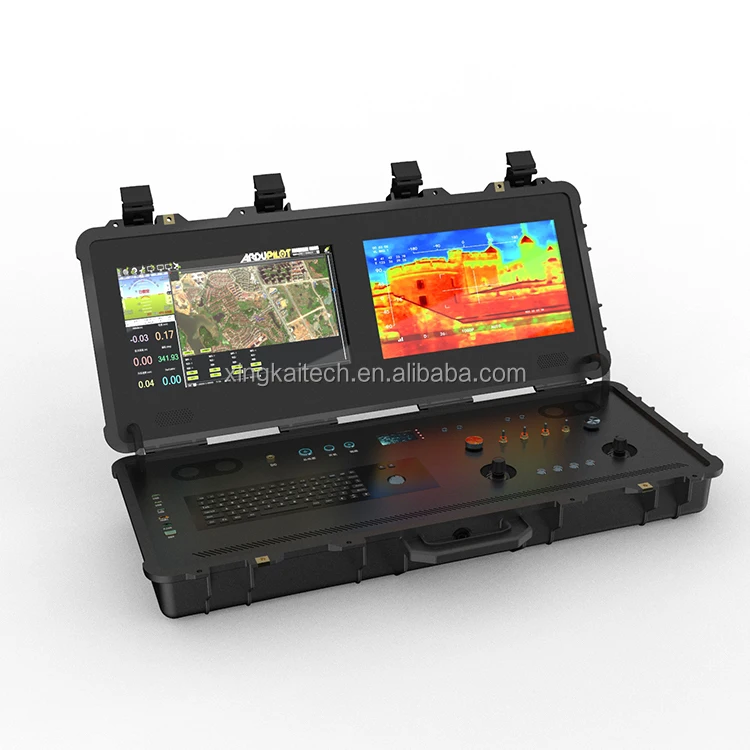

A dual-screen portable ground control station
|
|
Package
|
Packed in a professional shipping box
|
|
Technical Parameter
|
|
|
Box Type
|
Military three-proof safety box
|
|
Overall Dimensions
|
968MM(L)*406MM(W)*155MM(H)
|
|
Weight
|
Less than 20KG
|
|
Shell material
|
PVC
|
|
IP rating
|
IP67
|
|
Working Temperature
|
-20°C~ 60°C
|
|
Colour
|
Military green
|
|
Portable Features
|
Built in pull rod, external lifting cover
|
|
Operation Panel
|
|
|
Panel material
|
3K Carbon fiber plate
|
|
Interface support
|
USB*3,RS232*1,DC IN,HDMI,RJ45
|
|
Feeder and interface
|
N,SMA
|
|
Human-computer interaction
|
Industrial mouse button suit
|
|
Audio input / output
|
Microphone, speaker
|
|
Antenna interface
|
antenna interface of the radio link
|
|
Switch parameters
|
Main power supply, power on key, link power supply
|
|
Others
|
Industrial cooling fan
|
|
Industrial Control Host
|
|
|
Processor
|
i9 CPU + NVIDIA RTX A4000
|
|
Operating system
|
Windows 10
|
|
Memory
|
16G
|
|
Hard disk
|
256G
|
|
I/O Interface
|
USB,Network port,Serial port,HDMI
|
|
Left and right dual display
|
|
|
Dimensions
|
17.3inches
|
|
Resolution ratio
|
1920*1080
|
|
Screen scale
|
16:9
|
|
Backlight type
|
LED
|
|
Maximum brightness
|
1000nit(Automatic induction regulation)
|
|
Input interface
|
HDMI
|
|
Remote lever and button functions
|
|
|
Joysticks
|
*2 Industrial joysticks with Hall's sensors
|
|
Paddle
|
*4
|
|
Knob
|
*2
|
|
Push-button
|
*4
|
|
Communication protocol
|
USB HID External settings
|
|
Battery & Power
|
|
|
Display contents
|
Current voltage, current,current residual capacity, power, etc
|
|
Management system protection
|
Overcurrent protection,overvoltage protection, lowvoltage protection, overcapacity protection
|
|
Battery protection
|
Overcurrent protection, overtemperature protection, overvoltage protection and low voltage protection
|
|
Power Supply
|
220V
|
