Description
- Type: Hand Tool Parts
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Model Number: T40
- Product Name: T40
- Weight: 5980g
- Size: 354(l)*280(w)*80(h)mm
- Channel: 27 channel
- Remote Control Distance: 5km-20km
- Battery Life: 3.5h
- Processor: 8565U/10500U
- Operating System: Win7/Win10/Linux
- Serial Interface: S232*3/SBUS out/in
- Working Temperature: -20~+60℃
Products Description

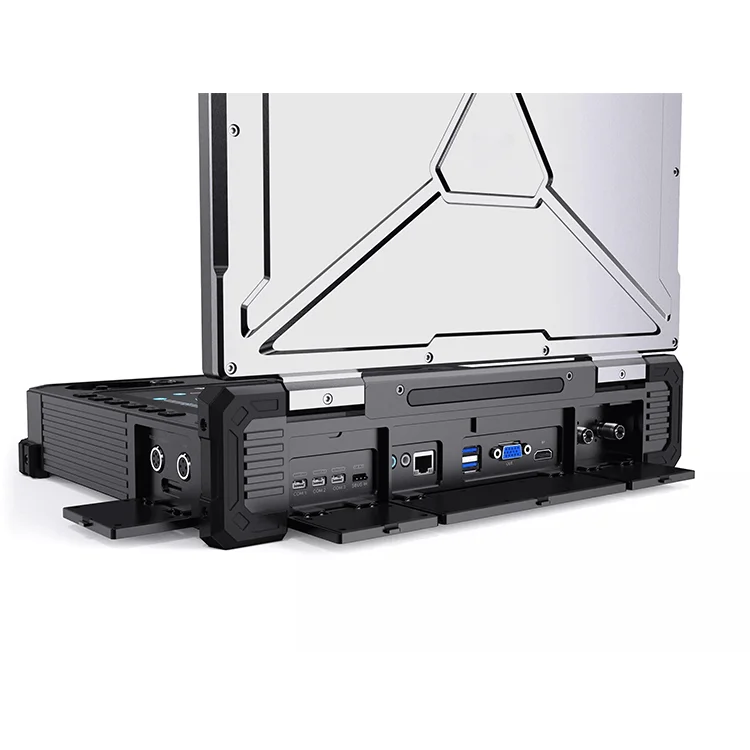

T40
High-definition highlight dual touch screen, while expanding the touchpad The joystick system can be mapped freely and supports traditional RC access Soft key setting Support all links in the market Aviation aluminum housing weighs only 5.98KG Support external H/D/M/I port video input Highly integrated

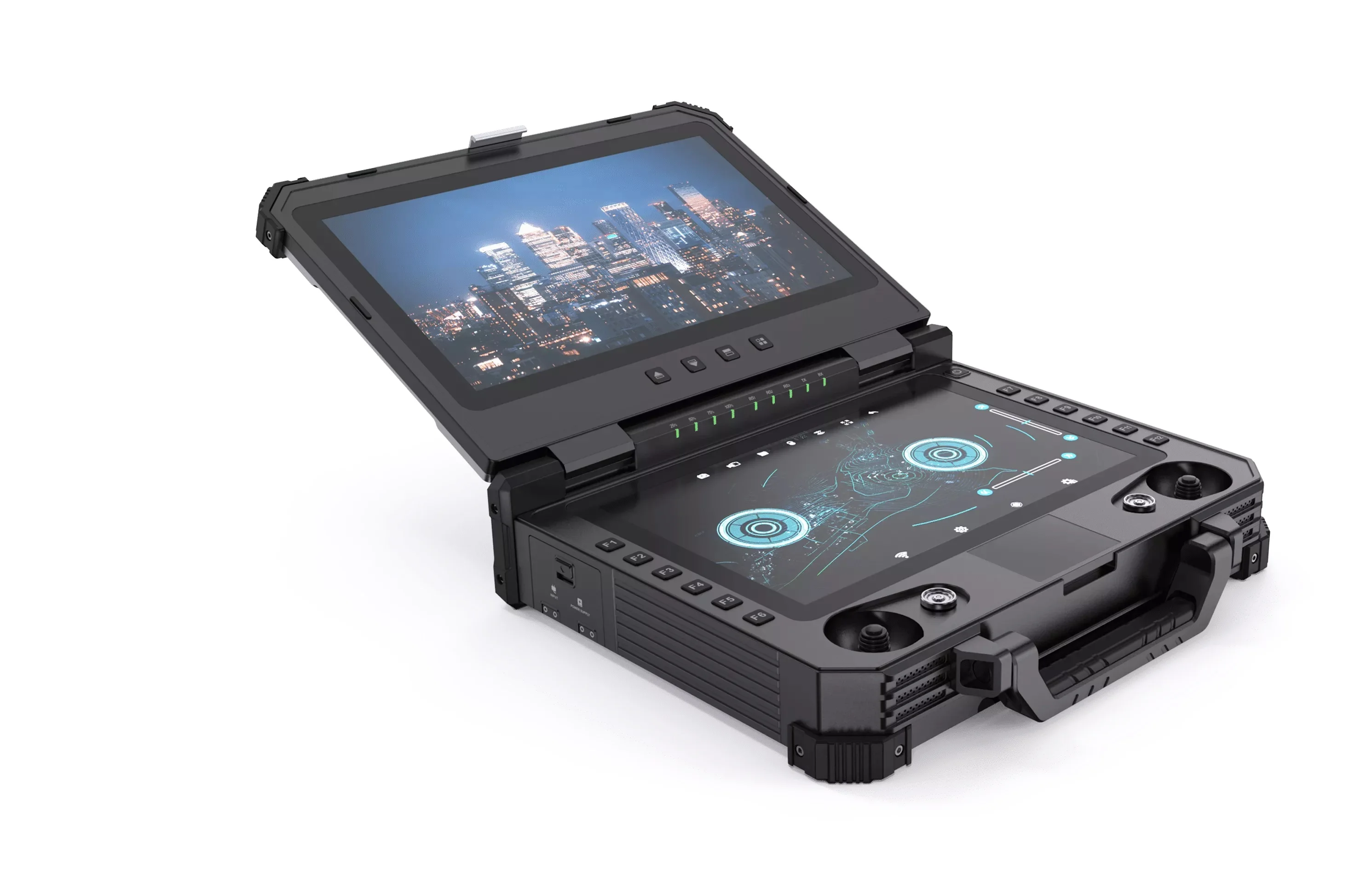

HD highlight dual touch screen, while expanding the touchpad
Using dual LCD screens, the upper screen displays images, and the lower screen displays the ground station system interface. The upper screen is an industrial-grade 13.3-inch ultra-bright LCD screen with an image resolution of 1920*1080. The lower screen is a 12.1-inch LCD screen with 1500 nits, which allows you to read clearly even in the brightest sunlight. Equipped with an ultra-sensitive screen, which can be controlled by ten-finger touch to avoid interference caused by accidental touch.
Support all links in the market
T40 integrates a long-distance map numerical control integrated data link, the maximum bandwidth can reach 40M; The network port expansion switch can provide up to 8 channels of video return; The data control station supports two independent SBUS uplinks, serial ports and other connectors, allowing real-time two-way data transmission. The integrated link eliminates frequency interference and incompatibility issues, and simplifies system installation and commissioning.
The joystick system supports traditional RC access
Soft key setting, each function key can realize single state, double state, three state control, add combination keys, super combination press function, you can use the keys to simulate the linear output function and multi-function function switching. The data of the remote control system supports two sets of SBUS output locally, and is directly transmitted to the airborne terminal through the link; The PC system can be obtained through COM5 or USB HID, and the original USB HID channel remapping function is created to satisfy users’ more flexible applications.

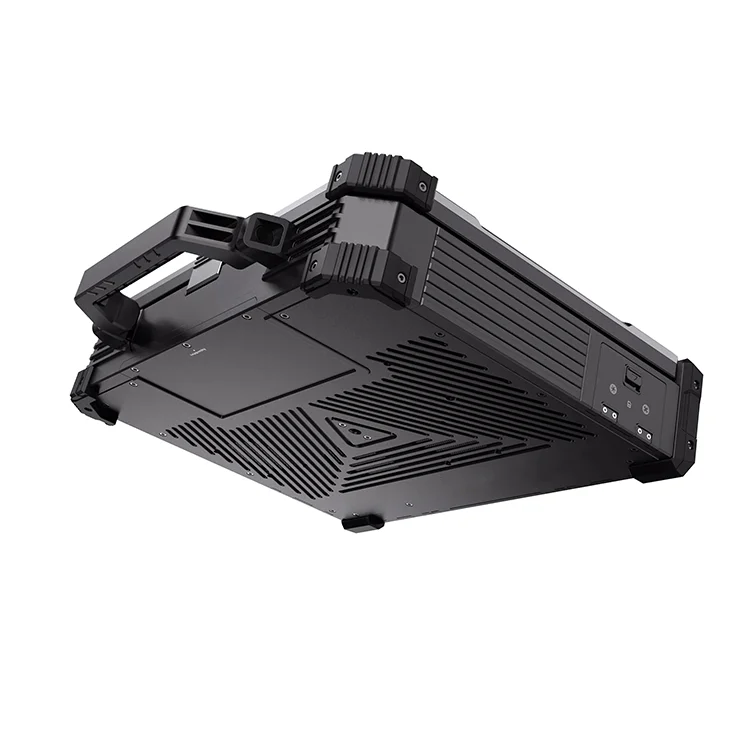

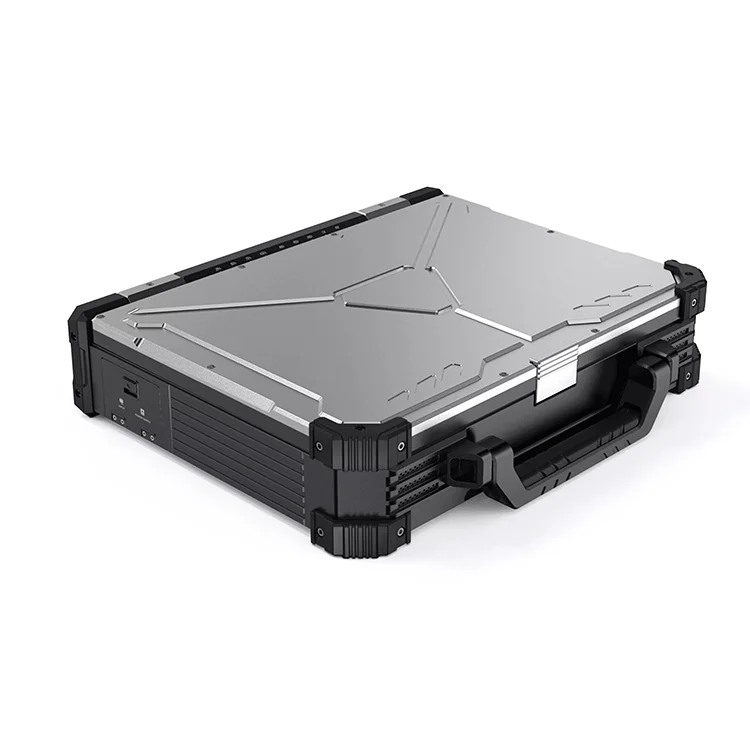

Aluminum alloy shell weighs only 5.98KG
It adopts aerospace aluminum alloy shell and refined machine tools. Each material is carefully studied. The weight is only 5.98KG, which is the lightest model in the industry.
Product Paramenters
|
Product Name
|
T40
|
|
Weight
|
5980g
|
|
Size
|
354(l)*280(w)*80(h)mm
|
|
Channel
|
27 channel
|
|
Remote Control Distance
|
5km-20km
|
|
Auxiliary Channel
|
Main joysticks*2(industrial joysticks with hall sensors)
|
|
Sub joysticks*4
|
|
|
Key button*12
|
|
|
Simulate keystrokes*7
|
|
|
Remote Control Delay
|
30ms
|
|
Battery Capacity
|
16.8V/17000mAh(external battery also supported)
|
|
Battery Life
|
3.5h
|
|
Display Screen
|
13.3inch 1920*1080 1000CCD(The upper screen)
|
|
12.1inch 1280*800 1500CCD(The lower screen)
|
|
|
Touch
|
Capacitive 10-finger multi-touch display
|
|
Processor
|
8565U/10500U
|
|
RAM
|
8G
|
|
Storage Capacity
|
256GB SSD
|
|
Operating System
|
Win 7/Win10/Linux
|
|
Network Interface
|
Wifi/4G
|
|
External Interface
|
USB3.0/LAN/H/D/M/I in/VGA out/Hi-fi
|
|
Serial Interface
|
S232*3/SBUS out/in
|
|
Working Temperature
|
-20~+60℃
|
