Description
- Type: Hand Tool Parts
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: DJI
- Model Number: Phantom 4 Multispectral
- Material: Other
- Power: Battery
- Private Mold: Yes
- Operator Skill Level: Intermediate
- Control Type: Remote Control
- image transmission distance: 10KM
- Takeoff Weight: 1487 g
- Diagonal Distance: 350 mm
- Max Descent Speed: 3 m/s
- Max Flight Time: Approx. 27 minutes
- Controllable Range: Tilt: -90° to +30°
- Battery: 5870 mAh
- Sensors: Six 1/2.9" CMOS
- FOV (Field of View): 62.7°
- Focal Length: 5.74 mm
- Aperture: f/2.2

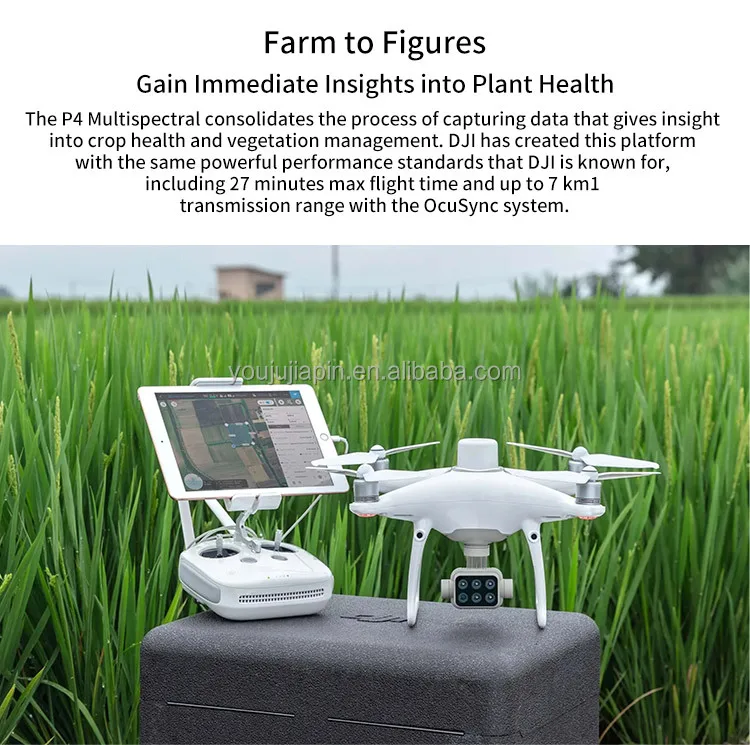

Farm to Figures

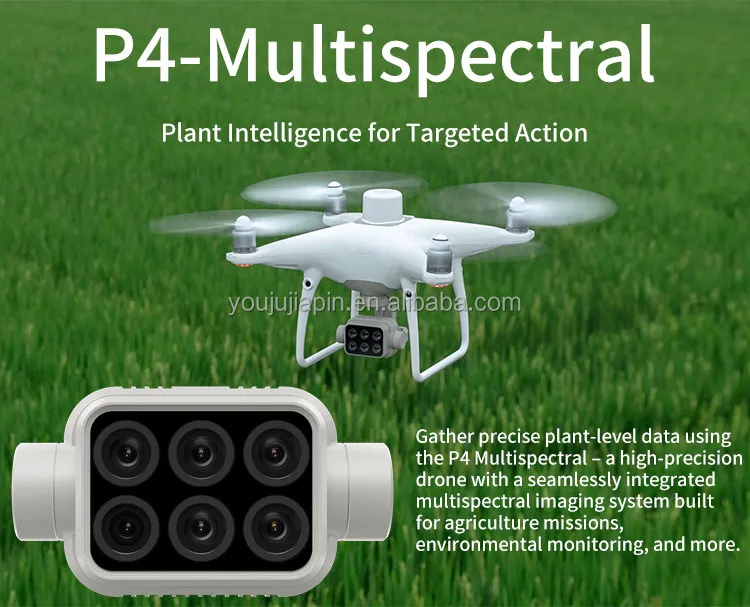

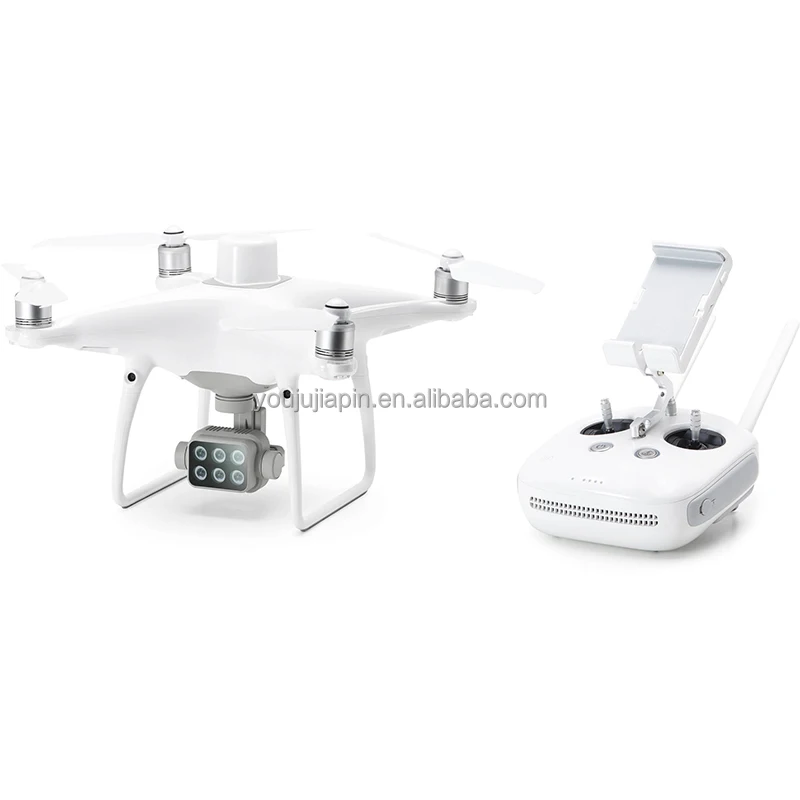

Gain Immediate Insights into Plant Health,The P4 Multispectral consolidates the process of capturing data that gives insight into crop health and vegetation management. DJI has created this platform with the same powerful performance standards that DJI is known for, including 27 minutes max flight time and up to 7 km1 transmission range with the OcuSync system.

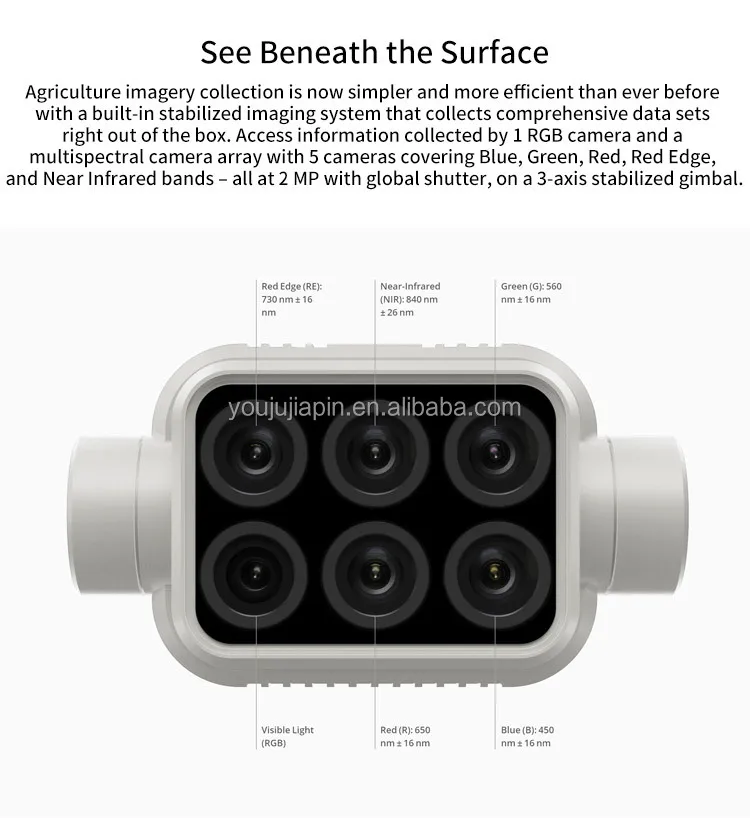

See Beneath the Surface

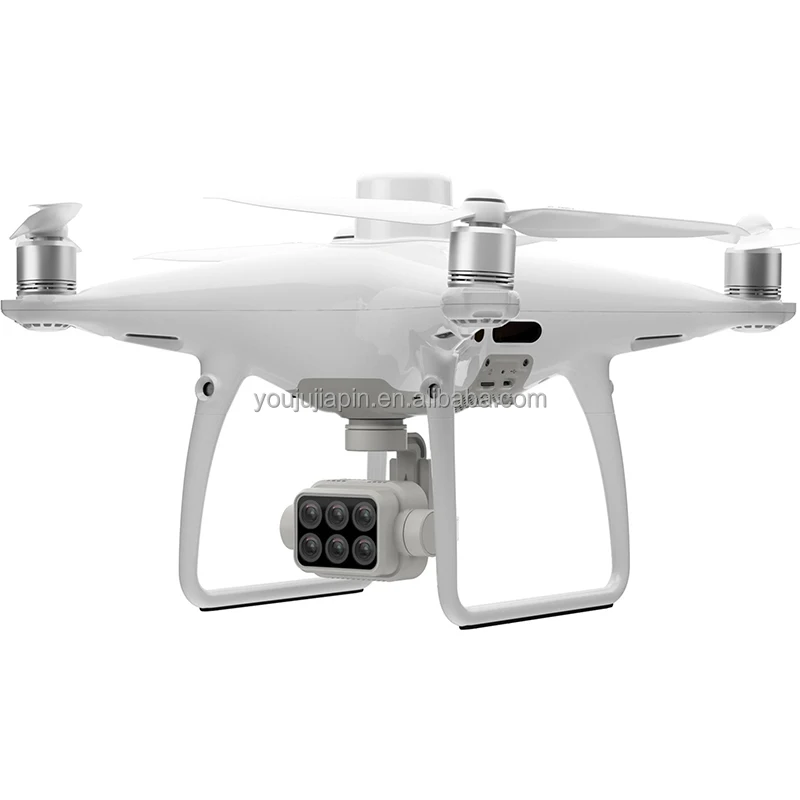

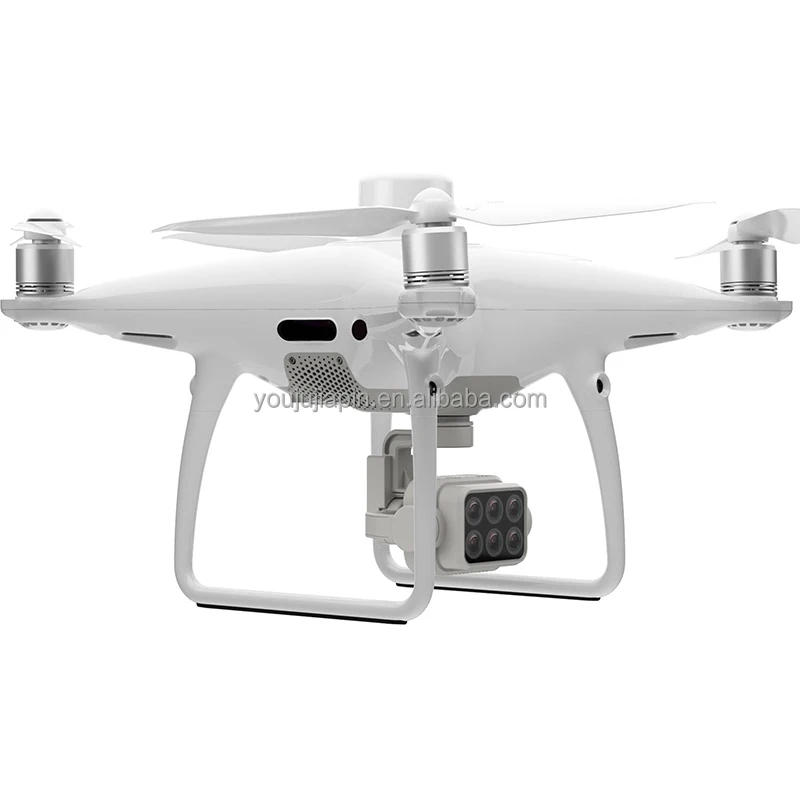

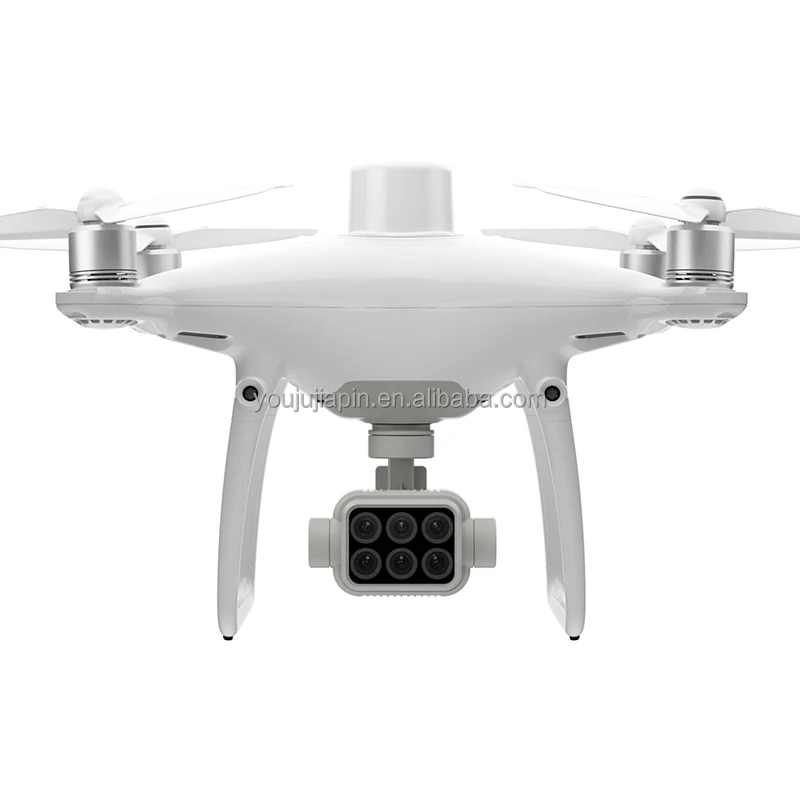

Agriculture imagery collection is now simpler and more efficient than ever before with a built-in stabilized imaging system that collects comprehensive data sets right out of the box. Access information collected by 1 RGB camera and a multispectral camera array with 5 cameras covering Blue, Green, Red, Red Edge, and Near Infrared bands – all at 2 MP with global shutter, on a 3-axis stabilized gimbal.

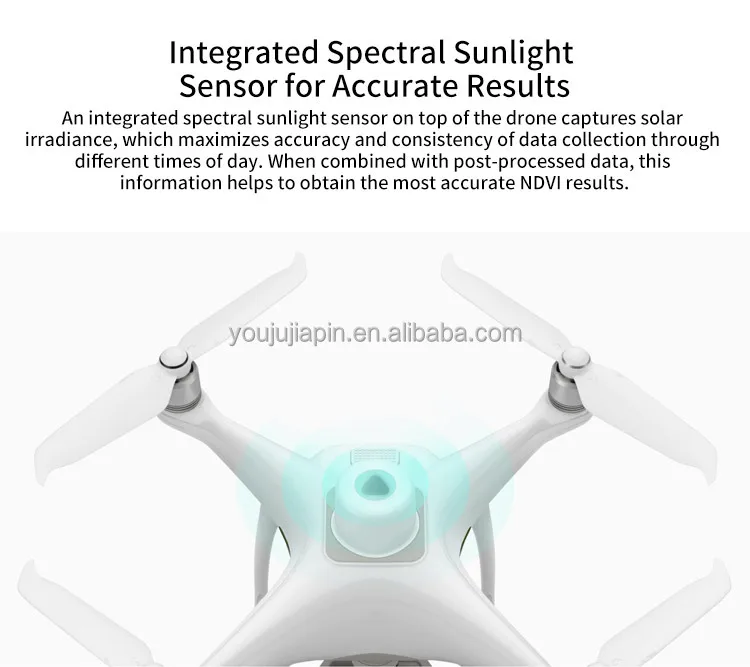

Integrated Spectral Sunlight Sensor for Accurate Results
An integrated spectral sunlight sensor on top of the drone captures solar irradiance, which maximizes accuracy and consistency of data collection through different times of day. When combined with post-processed data, this information helps to obtain the most accurate NDVI results.

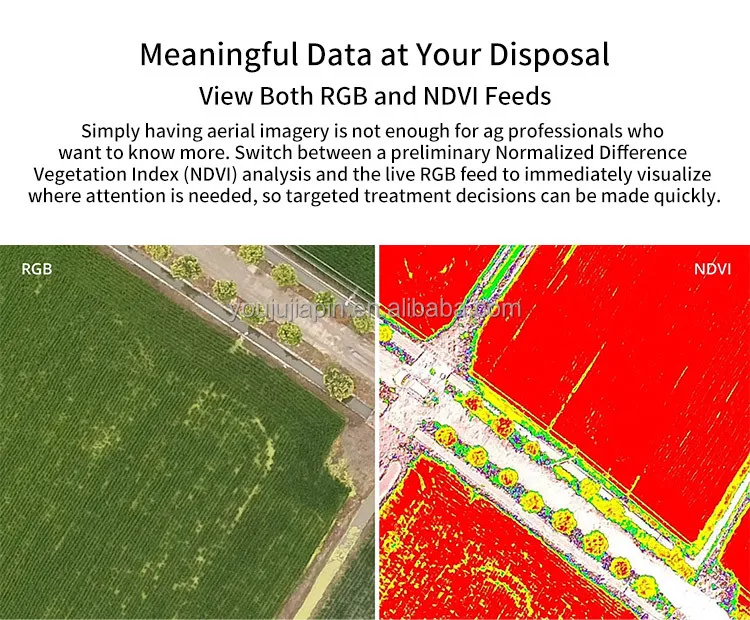

Meaningful Data at Your Disposal

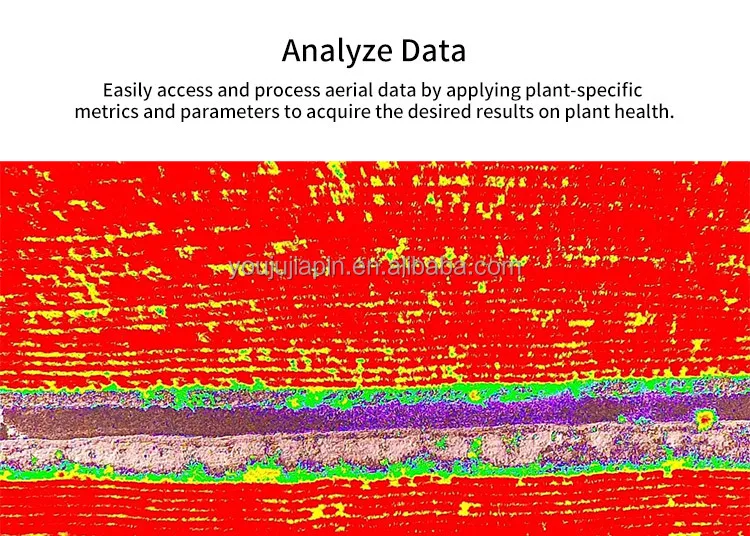

View Both RGB and NDVI Feeds,Simply having aerial imagery is not enough for ag professionals who want to know more. Switch between a preliminary Normalized Difference Vegetation Index (NDVI) analysis and the live RGB feed to immediately visualize where attention is needed, so targeted treatment decisions can be made quickly.

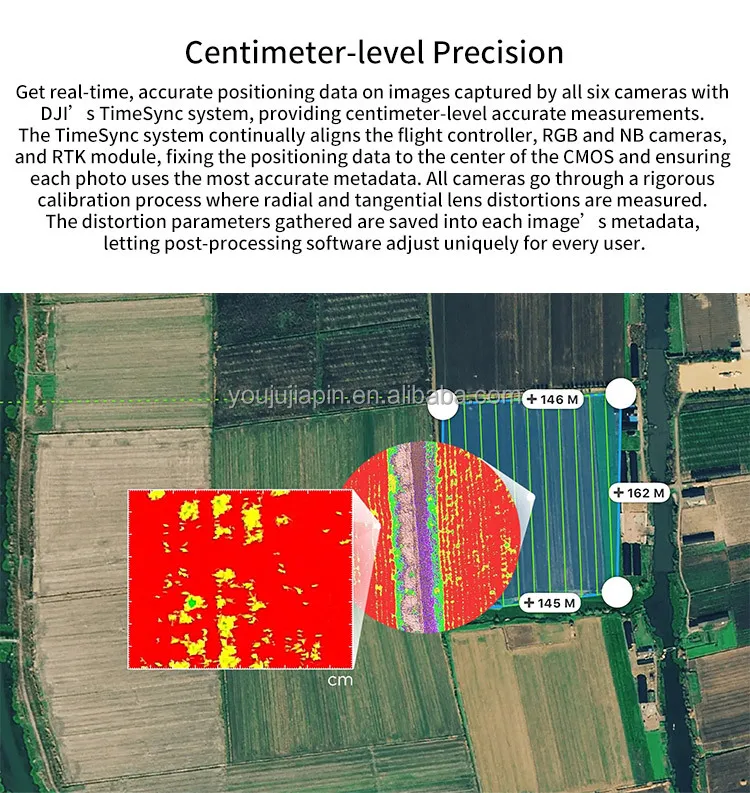

Centimeter-level Precision
Get real-time, accurate positioning data on images captured by all six cameras with DJI’s TimeSync system, providing centimeter-level accurate measurements. The TimeSync system continually aligns the flight controller, RGB and NB cameras, and RTK module, fixing the positioning data to the center of the CMOS and ensuring each photo uses the most accurate metadata. All cameras go through a rigorous calibration process where radial and tangential lens distortions are measured. The distortion parameters gathered are saved into each image’s metadata, letting post-processing software adjust uniquely for every user.

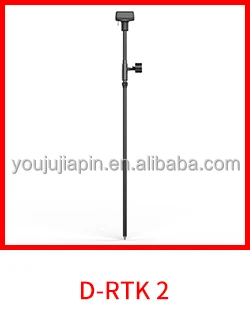

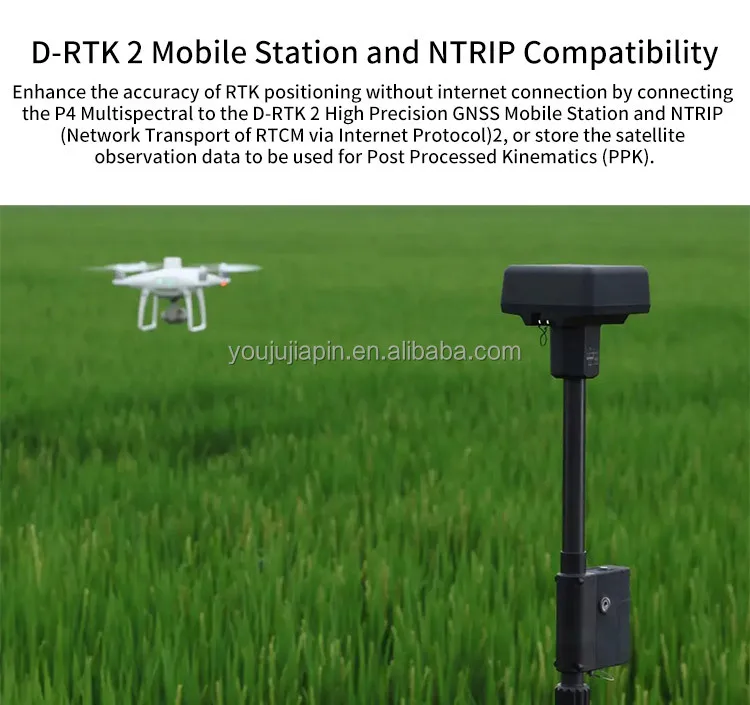

D-RTK 2 Mobile Station and NTRIP Compatibility
Enhance the accuracy of RTK positioning without internet connection by connecting the P4 Multispectral to the D-RTK 2 High Precision GNSS Mobile Station and NTRIP (Network Transport of RTCM via Internet Protocol)2, or store the satellite observation data to be used for Post Processed Kinematics (PPK).
| Mapping Functions | |
| Ground Sample Distance (GSD) | (H/18.9) cm/pixel, H indicates the aircraft altitude relative to the area mapped (unit: m) |
| Rate of Data Collection | Max operating area of approx. 0.63 km2 for a single flight at an altitude of 180 m, i.e., GSD is approx. 9.52 cm/pixel, with a forward overlap rate of 80% and a side overlap ratio of 60%, during a flight that drains the battery from 100% to 30%. |
| Camera | |
| Sensors | Six 1/2.9″ CMOS, including one RGB sensor for visible light imaging and five monochrome sensors for multispectral imaging. |
| Each Sensor: Effective pixels 2.08 MP (2.12 MP in total) | |
| Filters | Blue (B): 450 nm ± 16 nm; Green (G): 560 nm ± 16 nm; Red (R): 650 nm ± 16 nm; Red edge (RE): 730 nm ± 16 nm; Near-infrared (NIR): 840 nm ± 26 nm |
| Lenses | FOV (Field of View): 62.7° |
| Focal Length: 5.74 mm (35 mm format equivalent: 40 mm), autofocus set at ∞ | |
| Aperture: f/2.2 | |
| RGB Sensor ISO Range | 200 – 800 |
| Monochrome Sensor Gain | 1 – 8x |
| Electronic Global Shutter | 1/100 – 1/20000 s (visible light imaging); 1/100 – 1/10000 s (multispectral imaging) |
