Description
- Is Electric: No battery
- Technical parameters: Value 5
- Model Number: F405 / F722 / F4 V3S Plus Flight Controller + 45A / 60A ESC
- For Vehicle Type: Airplanes
- Tool Supplies: Battery
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: ESC
- Upgrade Parts/Accessories: Frame
- RC Parts & Accs: Motor Components
- Material: Composite Material
- Brand Name: Readytosky
- Origin: Mainland China
- Recommend Age: 14+y
- Use: Vehicles & Remote Control Toys

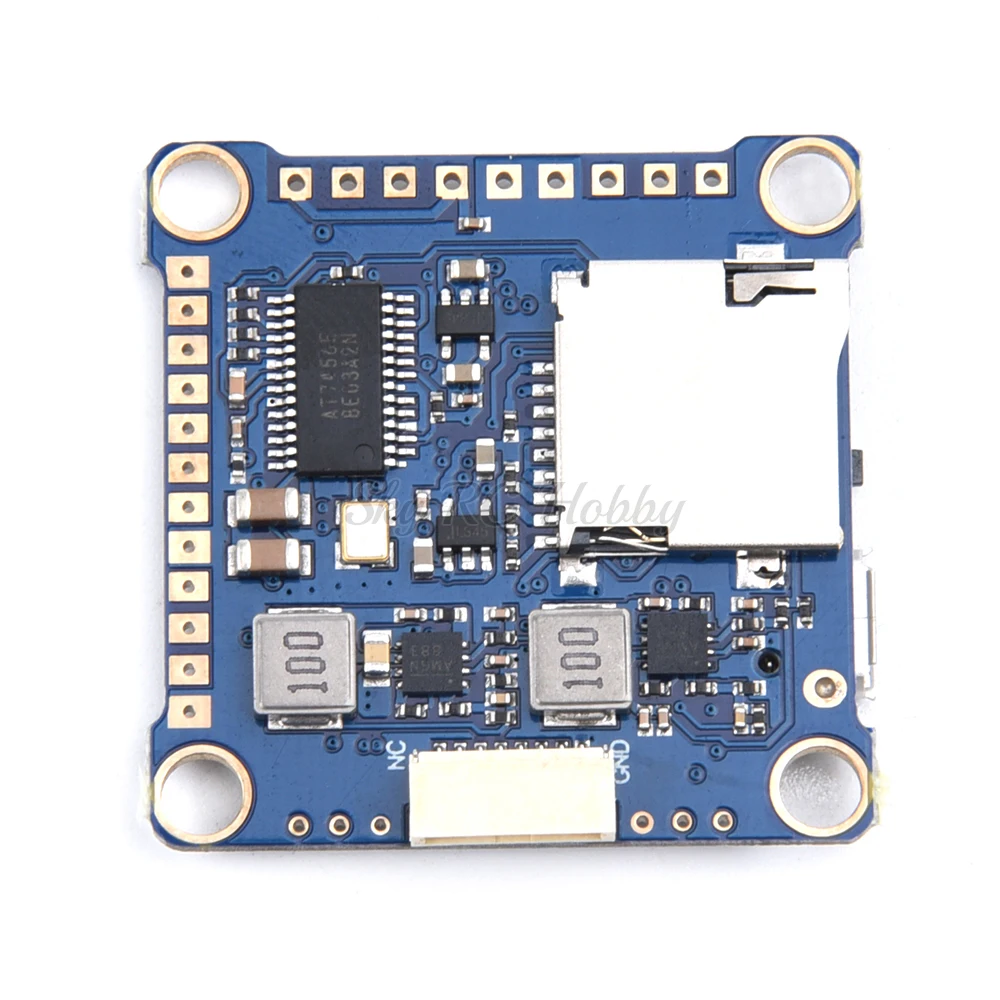

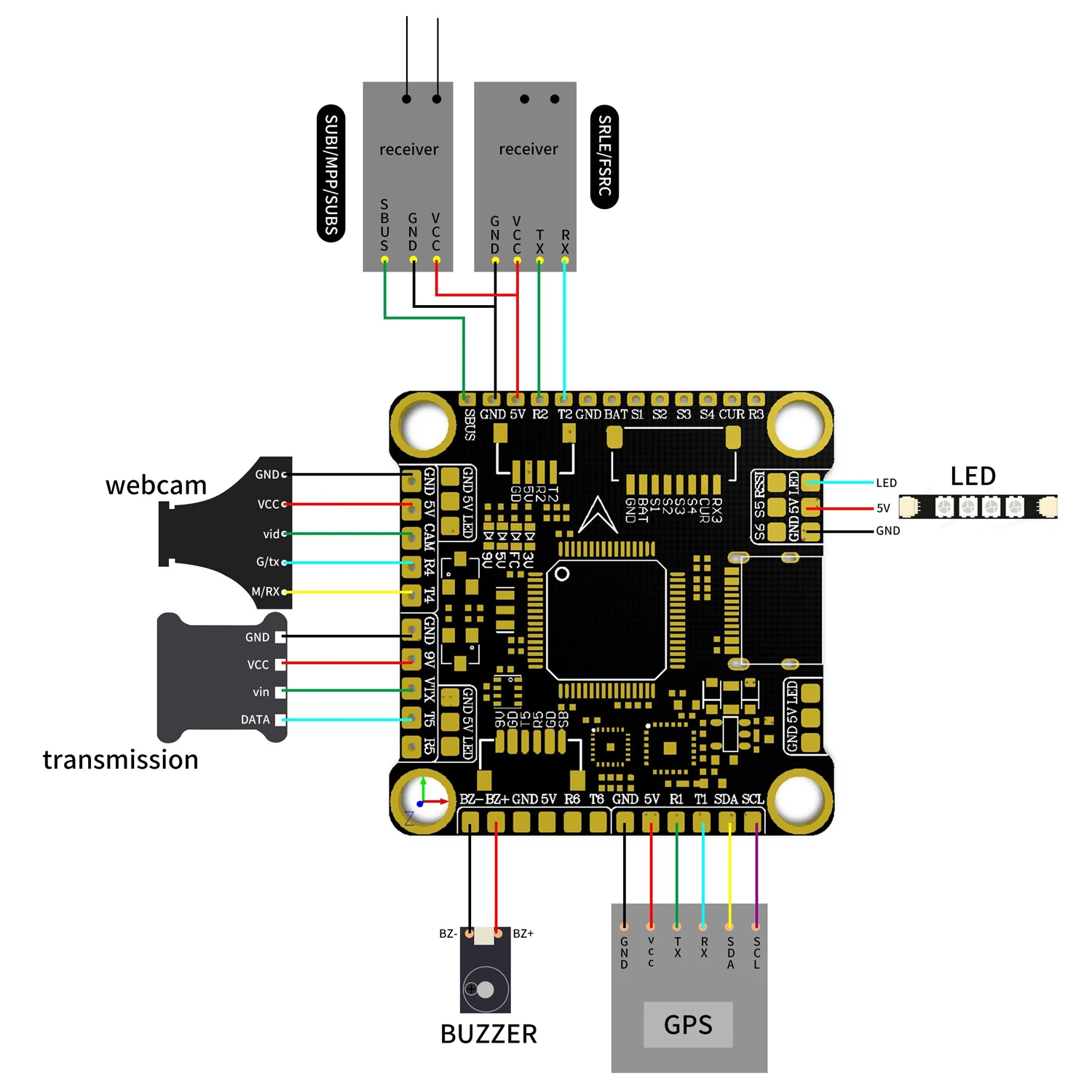

F4 V3S Plus Flight controller:

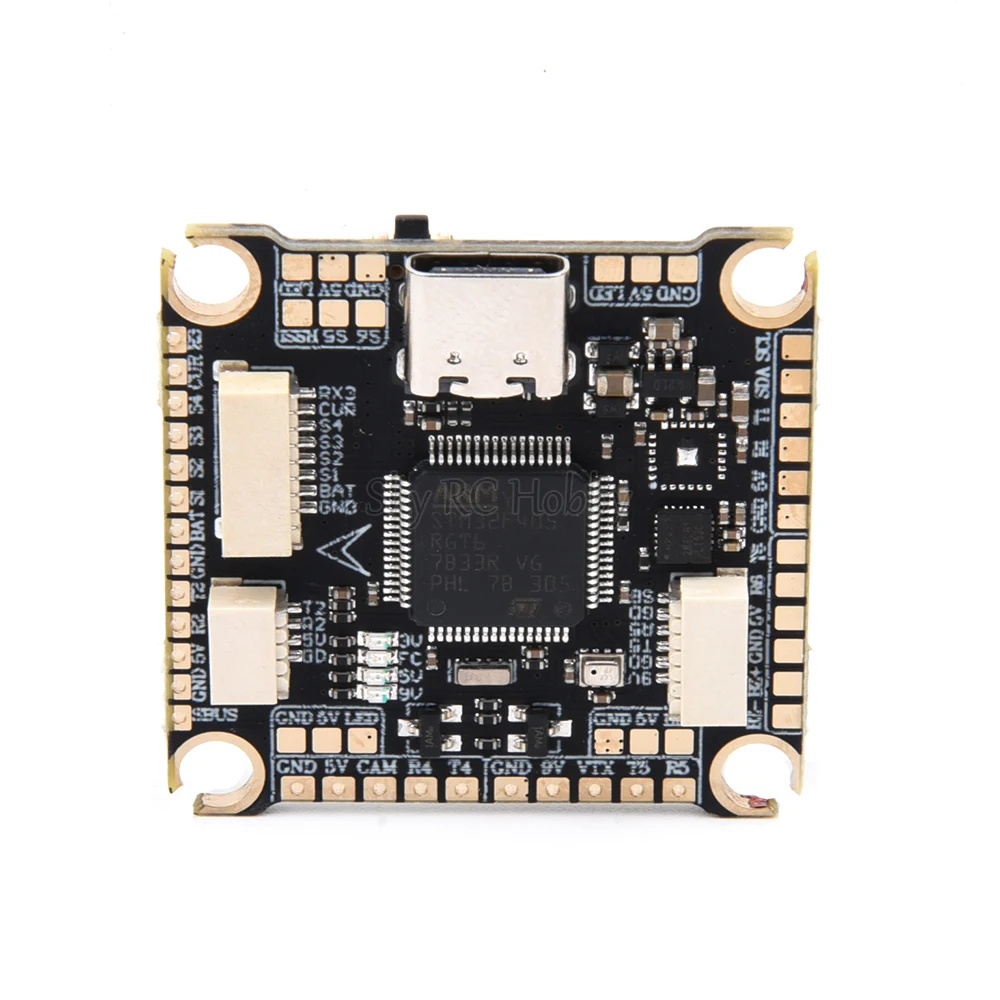

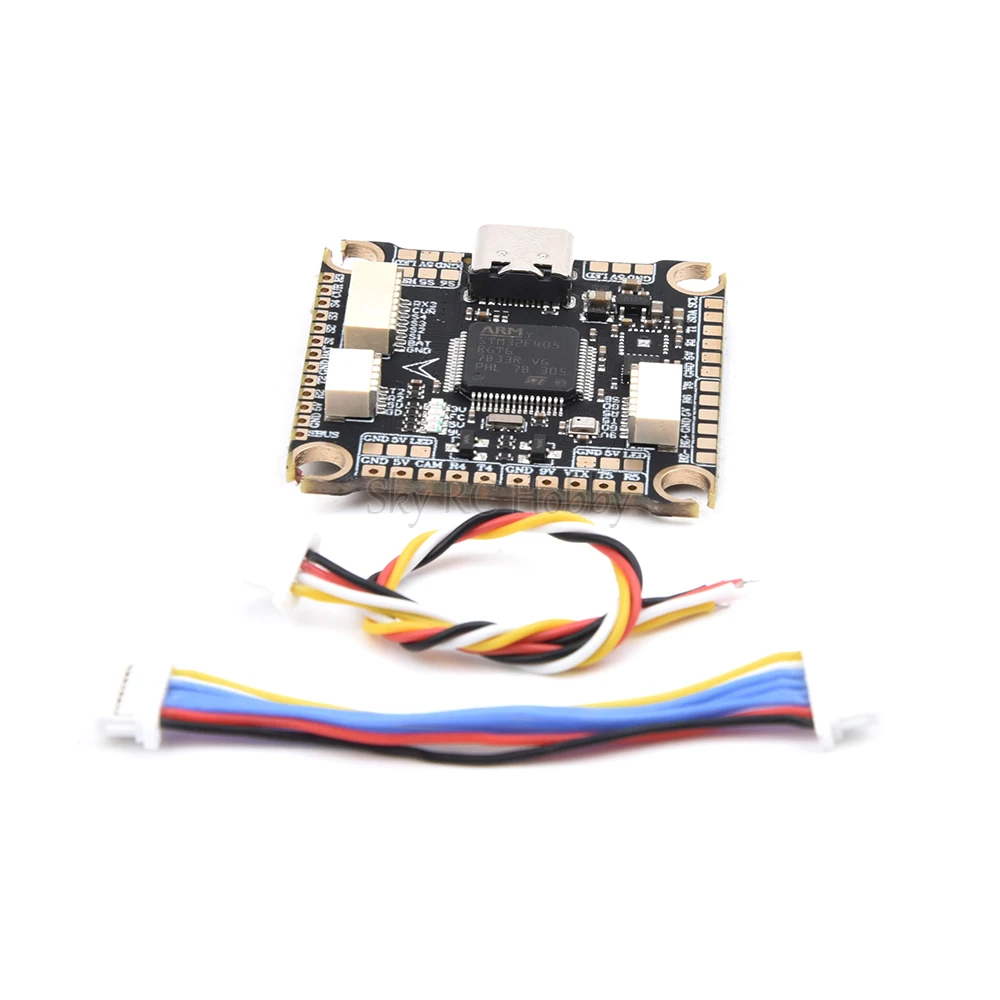

F4 F405 Flight Controller:
Product Parameters:
MCU: STM32F405RGT6 168MHz
Gyroscope: Mpu6500
Baro:Bmp280
OSD: Betaflight SPI OSD DJI HD OSD(UART5)
Black box: 16MB
6x Uarts: UART 1/2/3/4/5/6
4x PWM outputs
1x I2C
2x LEDs for FC STATUS (Blue) and 3.3V indicator(Red) and 5V indicator(Red) and 9V indicator(Red)
USB Type-C(USB2.0)
1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Curr/Rx3)
1x JST-SH1.0_6pin connector (9V/GND/T5/R5/GND/R2)
VTX 9V filtered power
DJI FPV OSD is supported by any spare UART
LED: 4 LED independent pads, support WS2812 programming lamp output.
Receiver: Support Sbus, crsf, ibus, SBUS, XBUS receiver,
The default receiver input is UART2(You can solder ELRS RX on UART2).
Power:
Input voltage: 3-6S
BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
LDO 3.3V: Max.1A
FC Firmware:
BetaFlight firmware: DAKEFPVF405
INAV firmware:DAKEFPVF405
Mounting:
Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
External size 36mm × 36mm
Flight control weight: 6.9g
Flight control onboard voltage sensor.

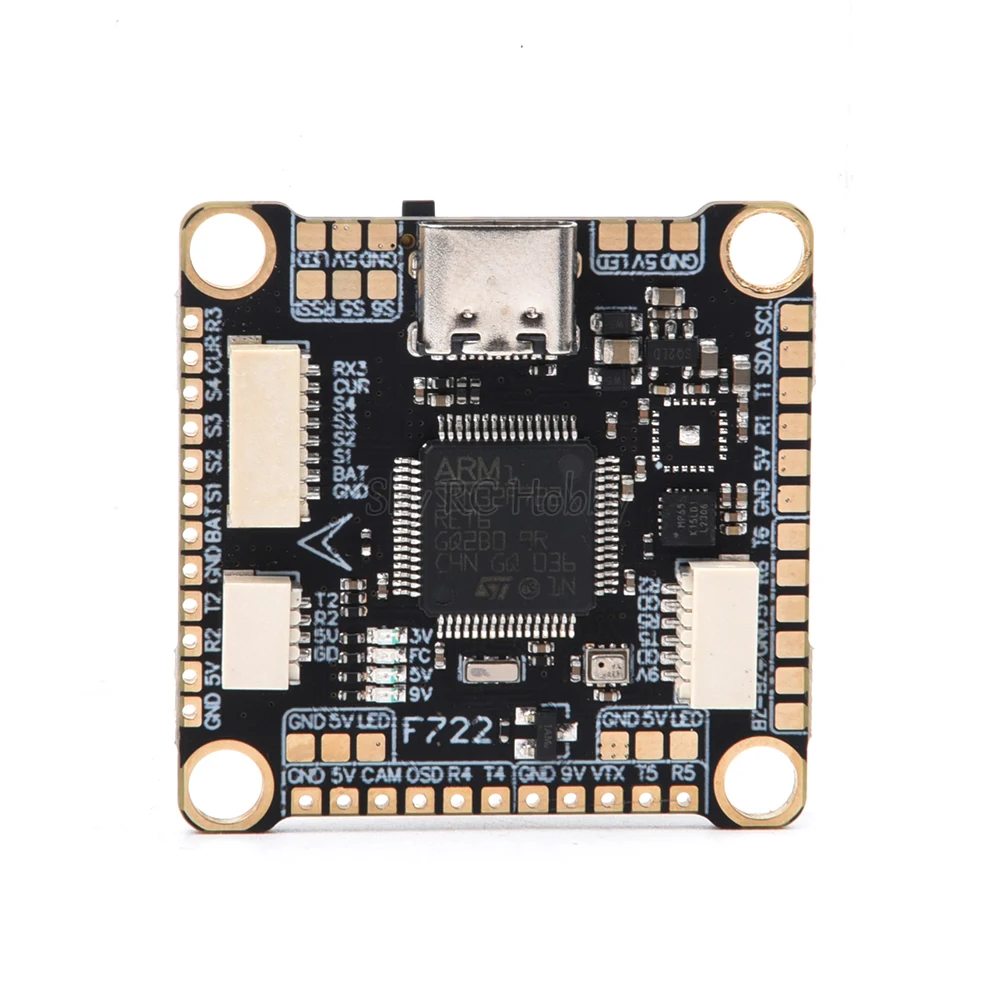

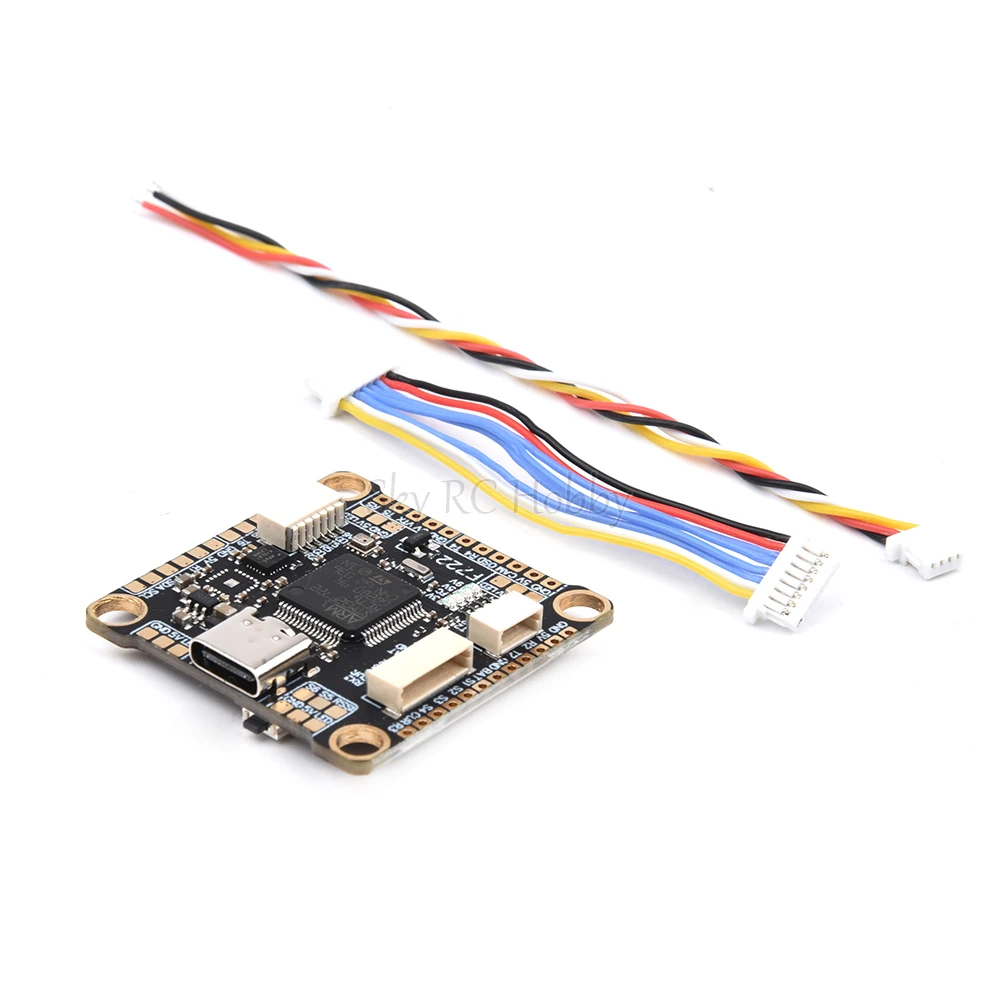

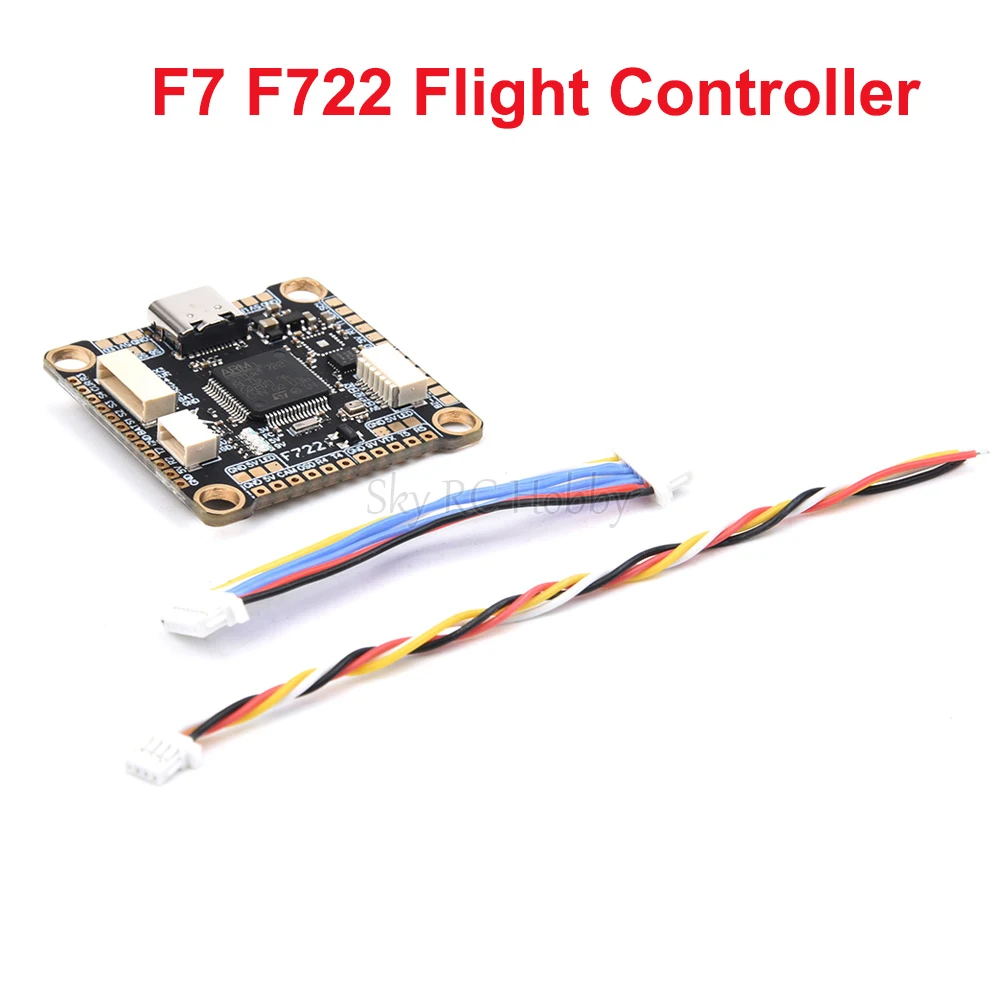

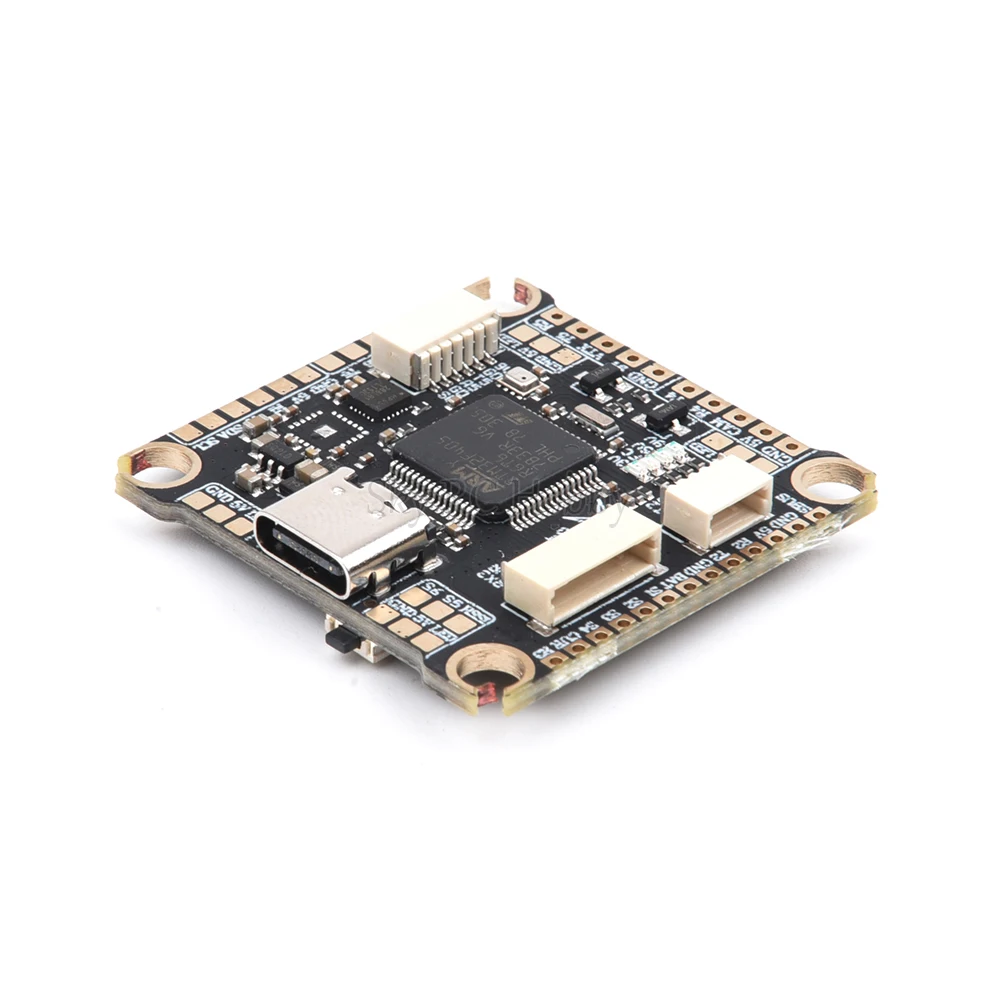

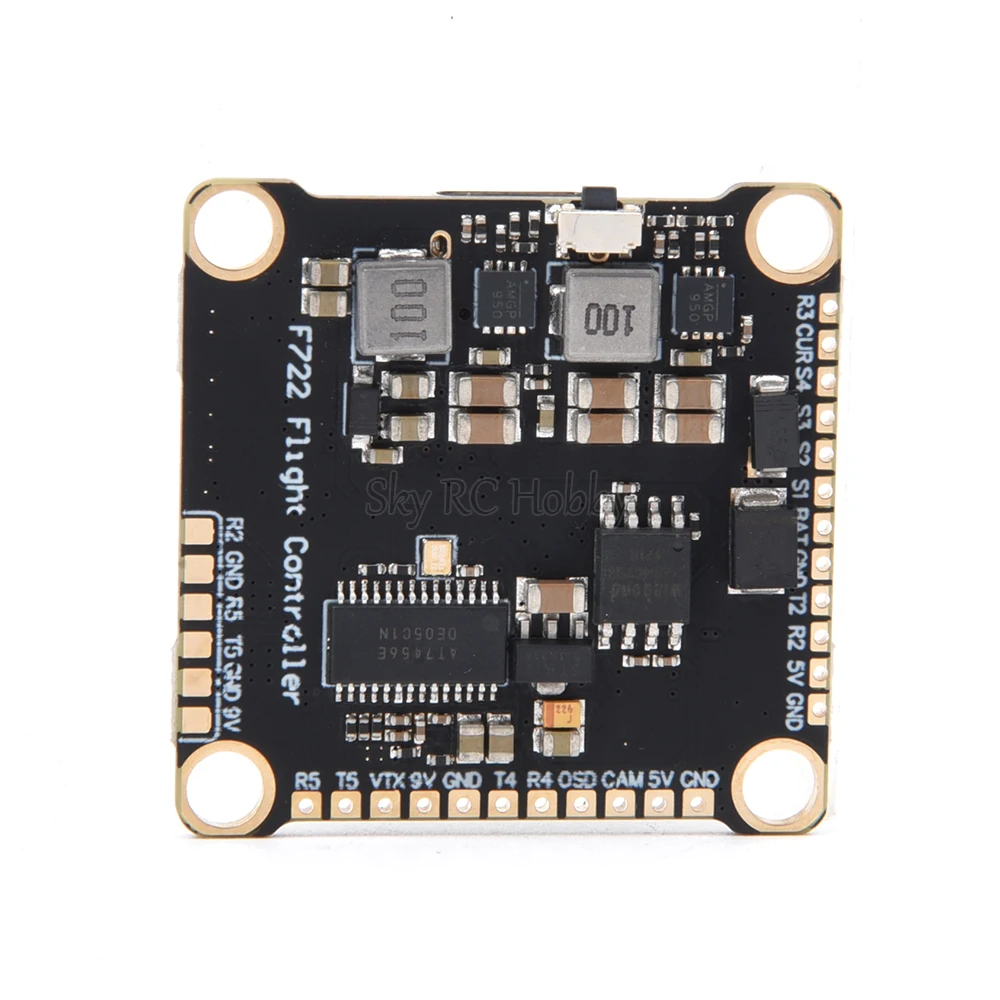

MCU: STM32F722RET6 216MHz
Gyroscope: Mpu6500
Baro:Bmp280
OSD: Betaflight SPI OSD DJI HD OSD(UART5)
Black box: 16MB
6x Uarts: UART 1/2/3/4/5/6
4x PWM outputs
1x I2C
2x LEDs for FC STATUS (Blue) and 3.3V indicator(Red) and 5V indicator(Red) and 9V indicator(Red)
USB Type-C(USB2.0)
1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Curr/Rx3)
1x JST-SH1.0_6pin connector (9V/GND/T5/R5/GND/R2)
VTX 9V filtered power
DJI FPV OSD is supported by any spare UART
LED: 4 LED independent pads, support WS2812 programming lamp output.
Receiver: Support Sbus, crsf, ibus, SBUS, XBUS receiver,
The default receiver input is UART2(You can solder ELRS RX on UART2), F7 has a built-in inverter, which can actually be installed in any spare UART.
Power:
Input voltage: 3-6S
BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
LDO 3.3V: Max.1A
FC Firmware:
BetaFlight firmware:DAKEFPVF722
INAV firmware:DAKEFPVF722
Mounting:
Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
External size 36mm × 36mm
Flight control weight: 6.9g
Flight control onboard voltage sensor.
BLHeli-S 45A/60A 3-6S DShot600 4-in-1 ESC:
Support Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
Power supply voltage: 3-6S (12-26V)
Continuous working current: 45A/60A
No built-in 5V BEC output
Firmware: BLHeli-S
Screw hole spacing: 30.5*30.5MM
Aperture: 4MM
Weight: 14.6g
– The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.
– EMI Shell provides stronger anti-interference capability.
Note: There is no difference in appearance between the 45A and 60A ESCs, which can be distinguished from the MOS tube.
