Description
- color: Black
- Model Number: Remote Control System Video Telemetry RC Link Communication XK-F203
- Brand Name: XINGKAITECH
- Origin: Mainland China

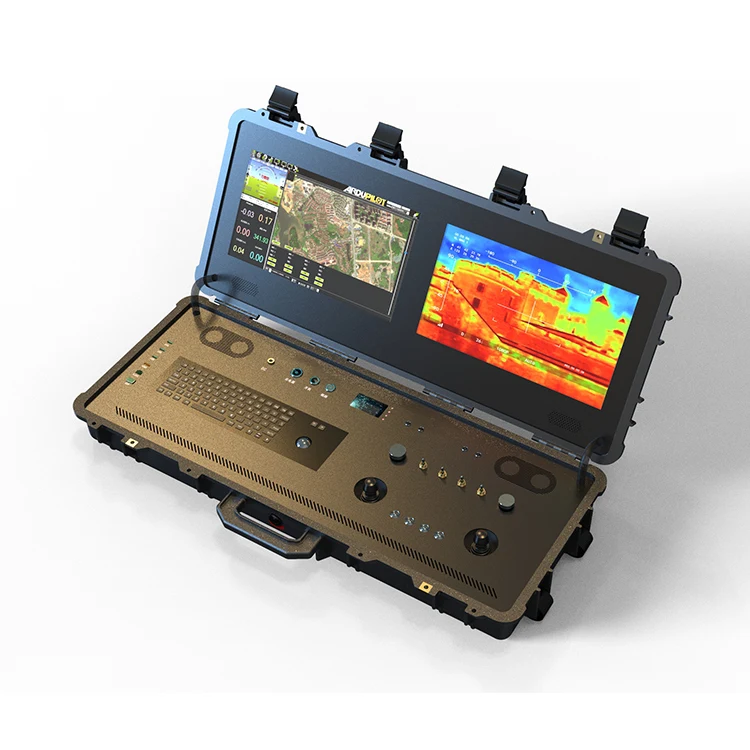

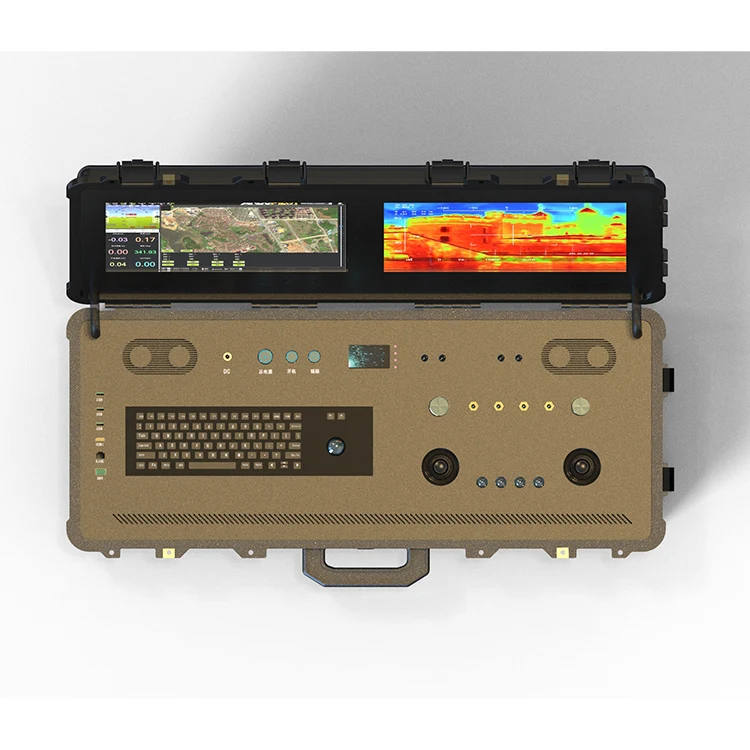

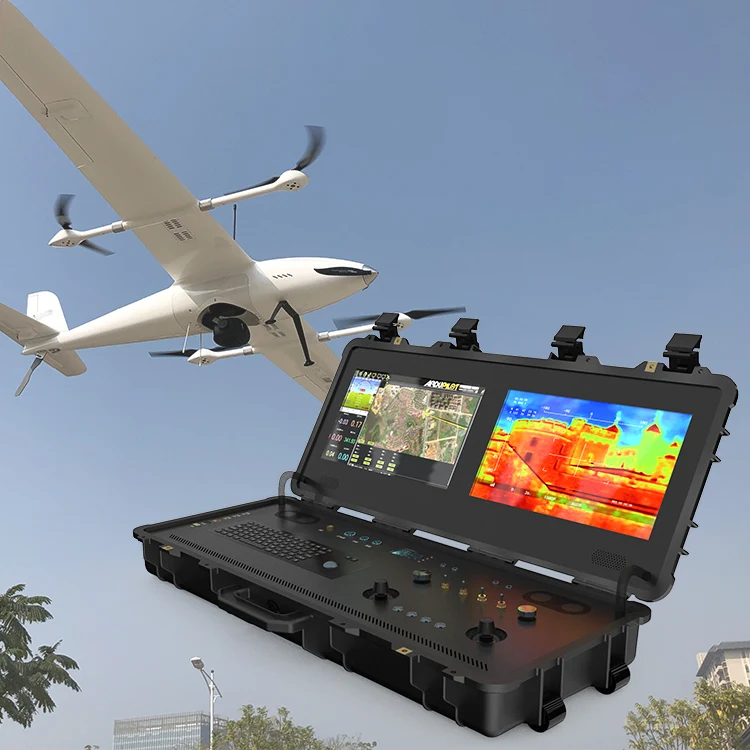

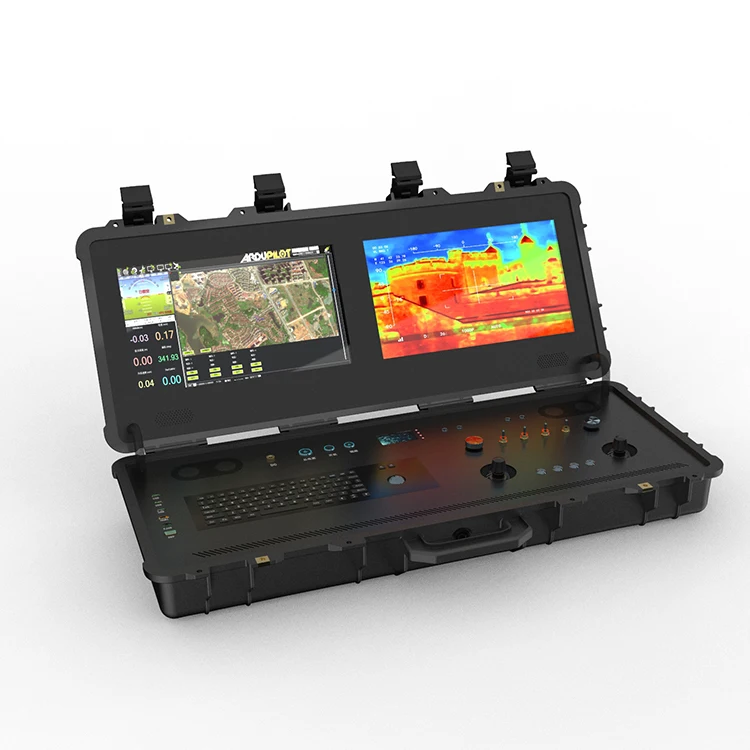

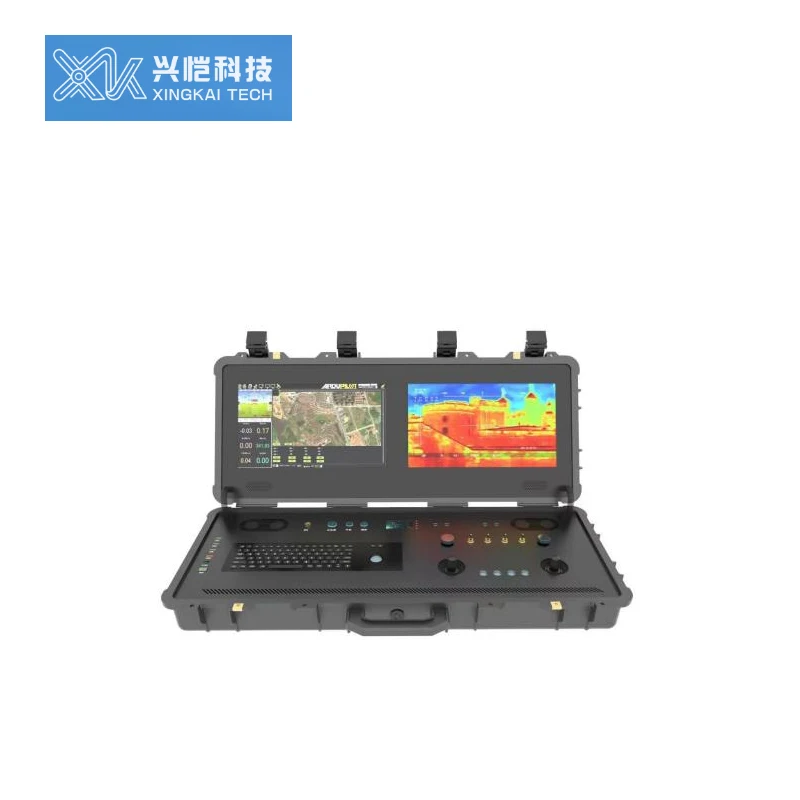

XK-F203 is a dual-screen portable ground control station with rugged ground computer,integrated industrial grade PC system and data link remote control system. XK-F203 provides the function such as mission planning, attitude control, payload control, remote monitoring, real-time video display, etc. The off-the-shelf portable ground control station (GCS) is a flexible and universal solution for controlling unmanned vehicles and payloads.
|
Technical Parameter: |
||
|
Box Type |
Military three-proof safety box |
|
|
Overall Dimensions |
968MM(L)*406MM(W)*155MM(H) |
|
|
Weight |
Less than 20KG |
|
|
Shell material |
PVC |
|
|
IP rating |
IP67 |
|
|
Working Temperature |
-20℃~60℃ |
|
|
Colour |
Military green |
|
|
PortableFeatures |
Built in pull rod, external lifting cover |
|
|
Operation Panel |
||
|
Panel material |
3K Carbon fiber plate |
|
|
Interface support |
USB*3,RS232*1,DC IN,HDMI,RJ45 |
|
|
Feeder and interface |
N,SMA |
|
|
Human-computer interaction |
Industrial mouse button suit |
|
|
Audio input / output |
Microphone, speaker |
|
|
Antenna interface |
antenna interface of the radio link |
|
|
Switch parameters |
Main power supply, power on key, link power supply |
|
|
Others |
Industrial cooling fan |
|
|
Industrial Control Host |
||
|
Processor |
i9 CPU + NVIDIA RTX A4000 |
|
|
Operating system |
Windows10 |
|
|
Memory |
16G |
|
|
Hard disk |
256G |
|
|
I/O Interface |
USB,Network port,Serial port,HDMI |
|
|
Audio input / output |
Microphone,speaker |
|
|
Others |
Reserved antenna interface for panel |
|
|
Left and right dual display |
||
|
Dimensions |
17.3inches |
|
|
Resolution ratio |
1920*1080 |
|
|
Screen scale |
16:9 |
|
|
Backlight type |
LED |
|
|
Maximum brightness |
1000nit(Automatic induction regulation) |
|
|
Input interface |
HDMI |
|
|
Remote lever and button functions |
||
|
Joysticks |
*2 Industrial joysticks with Hall's sensors |
|
|
Paddle |
*4 |
|
|
Knob |
*2 |
|
|
Push-button |
*4 |
|
|
Communication protocol |
USB HID External settings |
|
|
Power |
||
|
Displaycontents |
Current voltage, current, current residual capacity, power, etc |
|
|
Management system protection |
Overcurrent protection, overvoltage protection, lowvoltage protection, overcapacity protection Over power protection |
|
|
Battery protection |
Overcurrent protection, overtemperature protection, overvoltage protection and low voltage protection |
|
|
Power Supply |
220V |
|
