Description
- color: Black
- Model Number: Remote Flight Controller XK-F304E-100
- Brand Name: XINGKAITECH
- Origin: Mainland China
Product Description
Product Name
Xingkai F304E-100
Function
HD wireless digital video and data transmission device
Package
Packed in a professional shipping box
1. Product Performance Description
XK-F304E-100 is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance and other characteristics, Support the transmission of the network data, flight control data, PTZ control data, remote control data at the same time.
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F304E-100 supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
2. Features
* Supporting multiple frequency ranges and bandwidths.
* Having multiple control interfaces.
* High carrier-to-noise ratio
* Wide input voltage range, supporting DC12~25V voltage input.
* Low power consumption.
* Max downlink rate: 30Mbps, bandwidth: 20MHz;
Max. uplink rate : 26Mbps, bandwidth: 20MHz.
* Supporting OTA / local / remote upgrade.
* Supporting point-to-multipoint mode and multiple purposes.
3. Functions
* Working frequency ranges: 1.4GHz for free choice.
* Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
* Adjustable mapping mode among QPSK, 16QAM and 64AQM.
* Supporting three serial ports and one SBUS.
* Supporting simultaneous transmission of at most 3 network ports.
* Support AES128 encryption
4. Technical Parameters
Item
Spec/Parameters

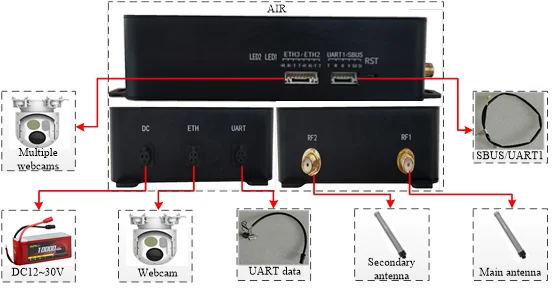

Air Unit

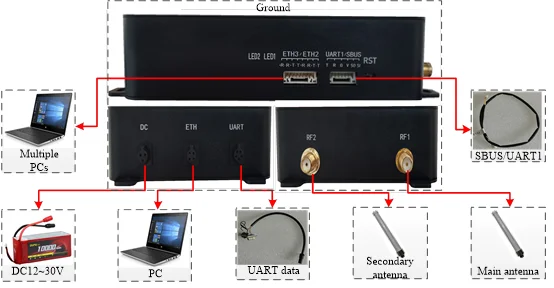

Ground Unit
Operation Voltage
DC12V~DC30V，Standard input DC12V
Power Consumption
≤20W @ 37dBm
Modulation
OFDM
Data interface
UART（TTL/RS232）/SBUS
Frequency
800MHz/1.4GHz(Customizable)
Channel rate
Uplink(Max): 30Mbps，Downlink(Max):26Mbps
Bandwidth
3/5/10/20MHz
Latency
≤15ms
Tx Power
≤37dBm（Adjustable）
Working temperature
-30℃~60℃
Storage temperature
-40℃~75℃
Antenna
3.5dBi
16dBi
Communication Protocol
IEEE802.3，Transparent serial data
Communication
Point to Point, Point to Multi-Points relay mode

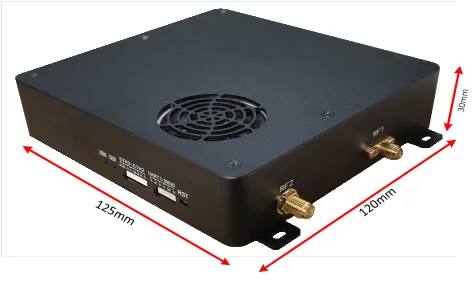

Dimensions
125*120*30mm
Weight
≤470g
Product Description
|
Product Name
|
Xingkai F304E-100
|
|
Function
|
HD wireless digital video and data transmission device
|
|
Package
|
Packed in a professional shipping box
|
1. Product Performance Description
XK-F304E-100 is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance and other characteristics, Support the transmission of the network data, flight control data, PTZ control data, remote control data at the same time.
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F304E-100 supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F304E-100 supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
2. Features
* Supporting multiple frequency ranges and bandwidths.
* Having multiple control interfaces.
* High carrier-to-noise ratio
* Wide input voltage range, supporting DC12~25V voltage input.
* Low power consumption.
* Max downlink rate: 30Mbps, bandwidth: 20MHz;
Max. uplink rate : 26Mbps, bandwidth: 20MHz.
* Supporting OTA / local / remote upgrade.
* Supporting point-to-multipoint mode and multiple purposes.
* Having multiple control interfaces.
* High carrier-to-noise ratio
* Wide input voltage range, supporting DC12~25V voltage input.
* Low power consumption.
* Max downlink rate: 30Mbps, bandwidth: 20MHz;
Max. uplink rate : 26Mbps, bandwidth: 20MHz.
* Supporting OTA / local / remote upgrade.
* Supporting point-to-multipoint mode and multiple purposes.
3. Functions
* Working frequency ranges: 1.4GHz for free choice.
* Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
* Adjustable mapping mode among QPSK, 16QAM and 64AQM.
* Supporting three serial ports and one SBUS.
* Supporting simultaneous transmission of at most 3 network ports.
* Support AES128 encryption
* Adjustable bandwidth among 3MHz, 5MHz, 10MHz and 20MHz.
* Adjustable mapping mode among QPSK, 16QAM and 64AQM.
* Supporting three serial ports and one SBUS.
* Supporting simultaneous transmission of at most 3 network ports.
* Support AES128 encryption
4. Technical Parameters
|
Item
|
Spec/Parameters
|
|
|
Air Unit
|
Ground Unit
|
|
|
Operation Voltage
|
DC12V~DC30V，Standard input DC12V
|
|
|
Power Consumption
|
≤20W @ 37dBm
|
|
|
Modulation
|
OFDM
|
|
|
Data interface
|
UART（TTL/RS232）/SBUS
|
|
|
Frequency
|
800MHz/1.4GHz(Customizable)
|
|
|
Channel rate
|
Uplink(Max): 30Mbps，Downlink(Max):26Mbps
|
|
|
Bandwidth
|
3/5/10/20MHz
|
|
|
Latency
|
≤15ms
|
|
|
Tx Power
|
≤37dBm（Adjustable）
|
|
|
Working temperature
|
-30℃~60℃
|
|
|
Storage temperature
|
-40℃~75℃
|
|
|
Antenna
|
3.5dBi
|
16dBi
|
|
Communication Protocol
|
IEEE802.3，Transparent serial data
|
|
|
Communication
|
Point to Point, Point to Multi-Points relay mode
|
|
|
Dimensions
|
125*120*30mm
|
|
|
Weight
|
≤470g
|
|
6.Packing&Shipping:
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
