Description
- Video Input: 8 Channel
- Resolution: 8MP
- TV System: NTSC,PAL
- PCS of Camera: 2PCS,4PCS,6Pcs,8pcs
- Cable Length: None
- Model Number: US-40S08HE-QWB
- Brand Name: yosam
- Origin: Mainland China
- Smart home platform: Other
- Resolution: 8MP/4K/3840*2160
- HDD Interface: 3.5 SATA Port, up to 14TB
- Video Compression: H.265 Video Surveillance Kit
- Video Output: HDMI-Compatible/VGA
- Working Temperature: -25 – 60 degrees Celsius
- Night Vision: up to 30M
- Dual LEDS: Warm Led+ IR Led
- Two Ways Audio: Support
- Face Detection: Support
- Human Detection: Support
- Vahicle Detection: Support

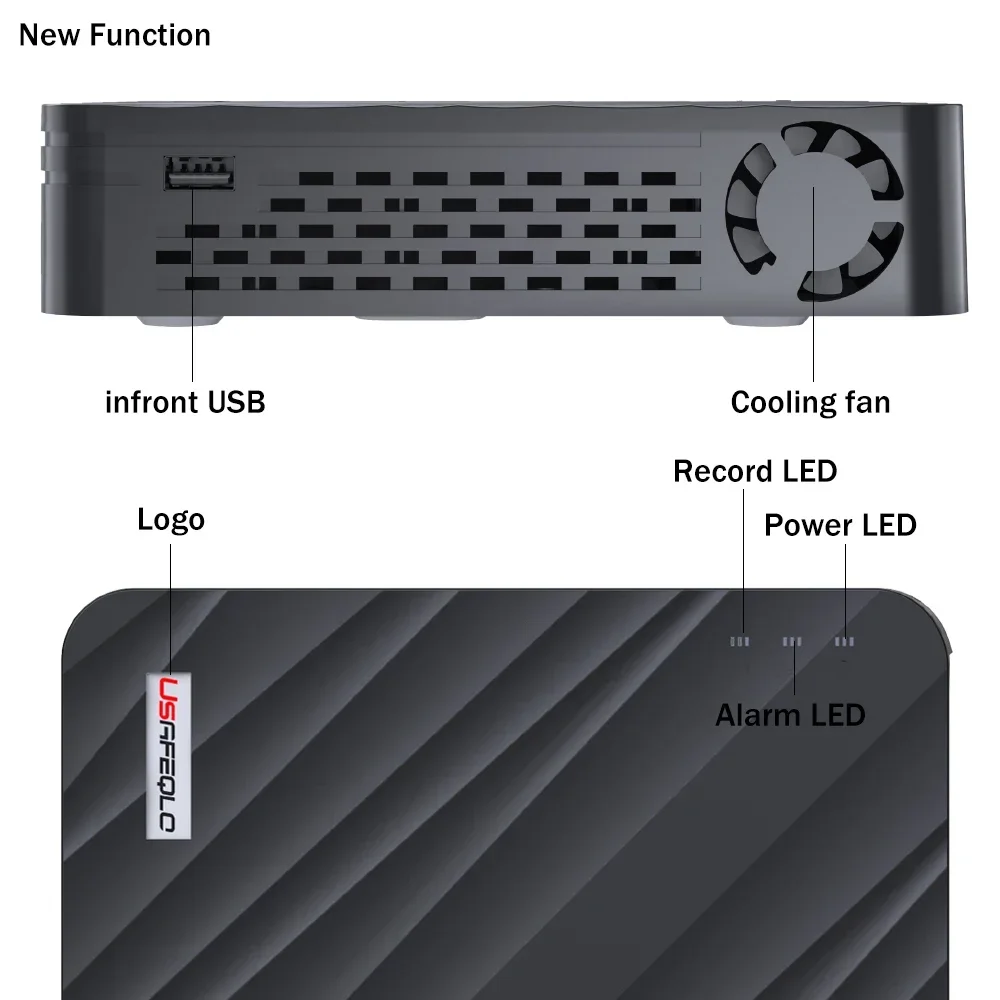

Latest cooling designThe product itself contains a heat sink, and we have added an additional cooling fan to make the video recorder work more stably.
Front USB interface
Solve the USB cable need to access the back end of the trouble, directly inserted in the front end, the operation of the video recorder, more convenient
indicator light
You can directly see the status of power-on, video recording, and alarm.
Whether you choose 5MP or 8MP, it will support face detection, human shape detection, vehicle detection
Whether you choose 5MP or 8MP, it will support face detection, human shape detection, vehicle detectionIt can’t support long-distance recognition, it can only recognize near objects
Timely and accurate alarms
Timely and accurate alarmsWhen an alarm occurs, your phone will receive the alarm message synchronized, you can turn this feature on and off at any time

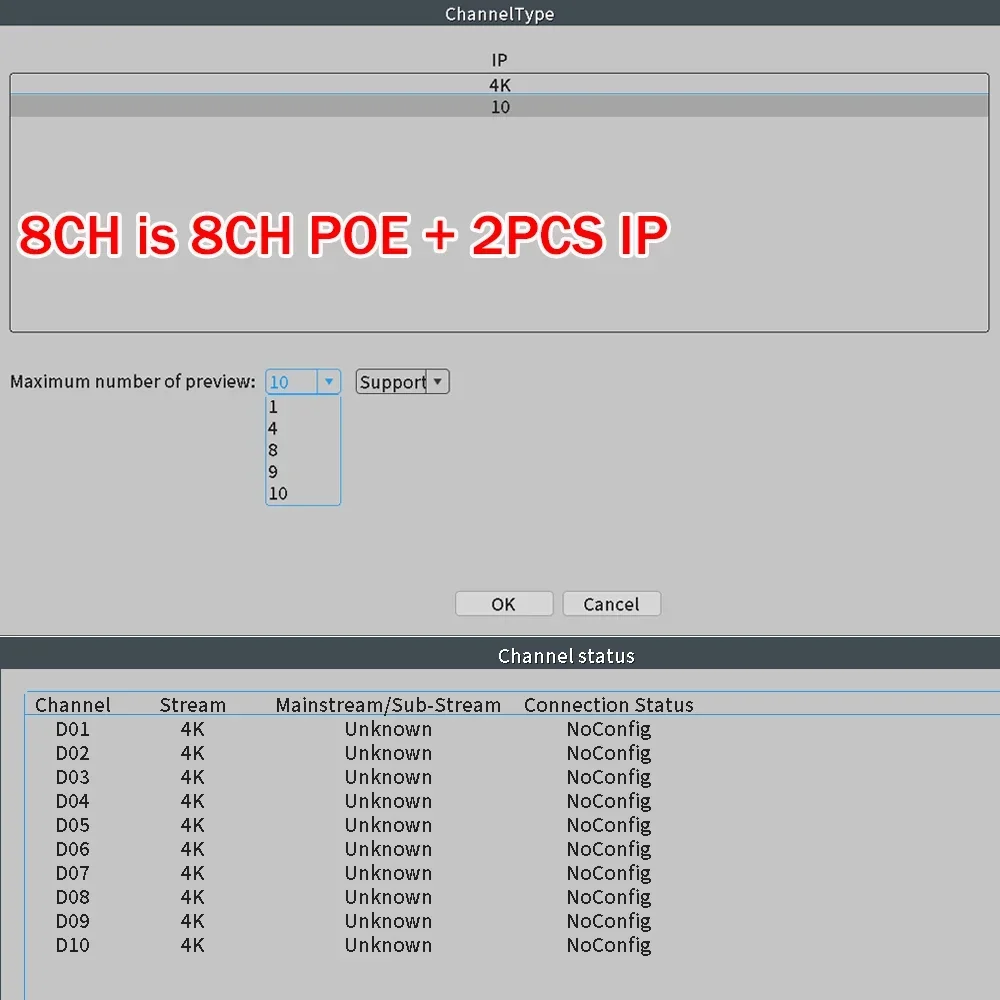

8CH POE and 2CH IP 4K NVR
NVR support 10CH IP 4K H.265 Camera input, have offer 8CH POE 48V+2CH IP 12V camera
Output Max 3840*2160
If you choose 8MP, and your monitor have 4K display, image will be well.
Support 28 countries language
Very simple installationYou just need to use a network cable to connect the POE port of the VCR and the POE port of the camera, configure the VCR to display the perfect picture!
AI Leds
AI LedsThe camera will turn to black and white when it enters the night, the infrared light will be on, when the alarm is detected, the white light will be on automatically and the screen will switch to color.
Two ways audio
Two ways audioYou can always use the app to talk to the person next to your camera
H.265
H.265Latest H.265 encoding can help you save 1x storage space
8MP/5MP POE Audio Camera Specification
|
POE Camera |
Type |
QS 5A/8AxxS |
|
|
Lens |
3.6mm |
||
|
Chip |
GOKE7205V300 5239S/NT98566 8239S |
||
|
Effective Pixels |
5.0MP 2880*1616 |
8.0MP 3840*2160 |
|
|
Sensor |
SC5239S |
SC8239S |
|
|
Day & night conversion mode |
Auto,30M IR Night Vision |
||
|
Led Light |
6 PCS Dual LEDs (White Lights + Infrared Lights) |
||
|
Working Temperature |
-20°C ~ 60°C |
||
|
Video Output |
5MP |
8MP |
|
|
Audio interface |
Two Ways Audio |
||
|
Network protocol |
RTSP/FTP/DHCP/NTP/UPnP/P2P |
||
|
AI Camera |
Human Body Motion Detection |
||
|
AI Face |
Face Detection Suport |
||
|
AI Vahicle |
Support |
||
|
Motion Detection |
Support |
||
|
Function |
Suppoet WEB ,OSD,Motion detection;Support CMS;VMS |
||
|
Mobile Device |
iOS,Android,(XMEYE Pro) |
||
|
Material |
Metal Case |
||
|
Power |
DC12V , POE 48V |
||

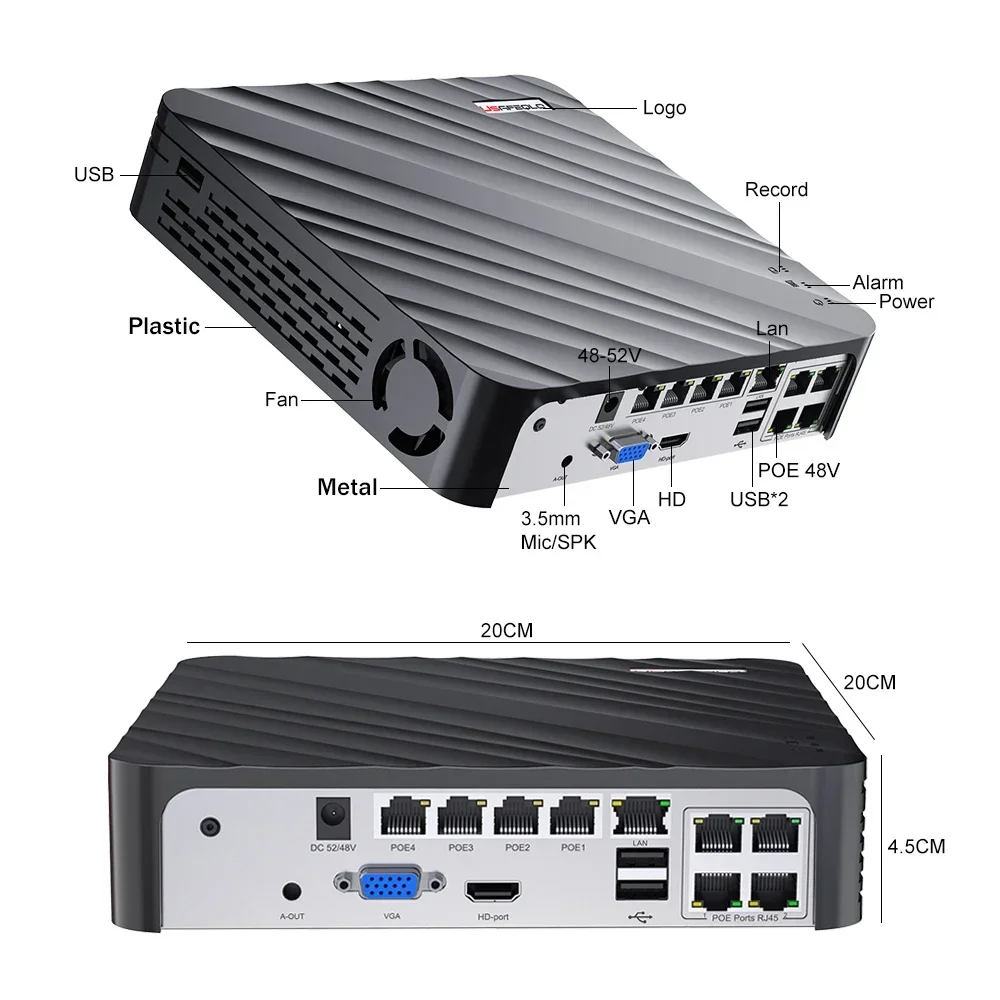

Item Size

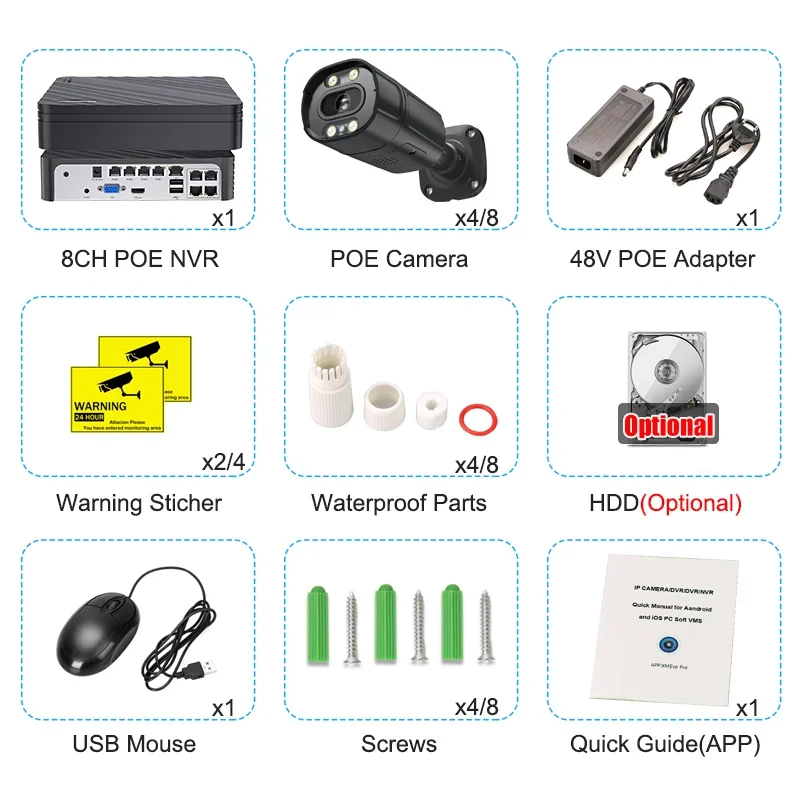

Product List

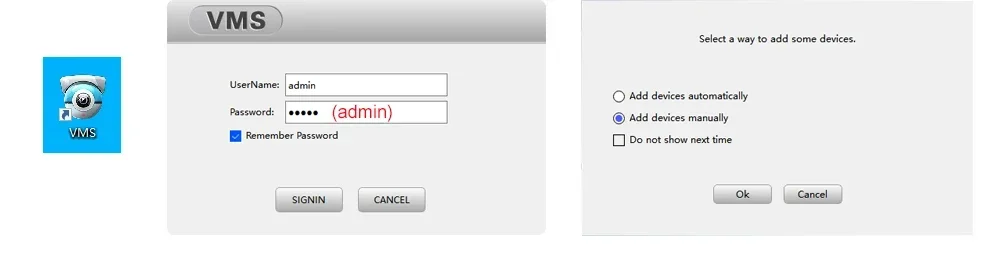

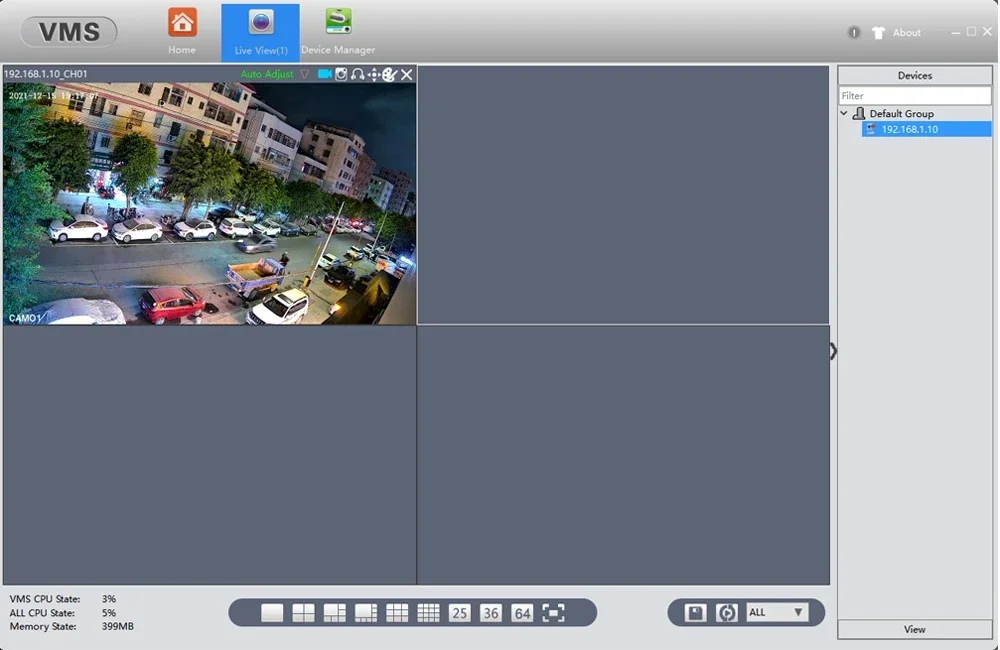

Support APP and PC Soft visit the NVR
NVR Win10 Orgional Menu Style
