Description
- Compatible Drone Brand: DJI
- Brand Name: Vieruodis
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: DX
- Model Number: DXZ36T
- Warranty: 1 Year
- Special Features: Vandal-proof, Motion Detection, PAN-TILT
- Sensor: IRC day-night HD CMOS
- Style: BOX Camera
- Function: PAN-TILT
- Video Compression Format: H.265
- Data Storage Options: Micro SD card
- Application: Outdoor
- Customized support: Online technical support, Customized logo
- Type: Digital Camera
- Technology: Pan / Tilt / Zoom
- Lens (mm): 36x zoom 5.8 ~210 mm F1.5~F4.8
- Digital zoom: 12x (360x with optical zoom)
- High Definition: 1920x1080P(Full-HD)
- Video output: HDMI/SD Card
- Operating Temperature: -30- +80 ℃
- Starlight level ultra low illumination: YES
- Target Tracking Function: YES

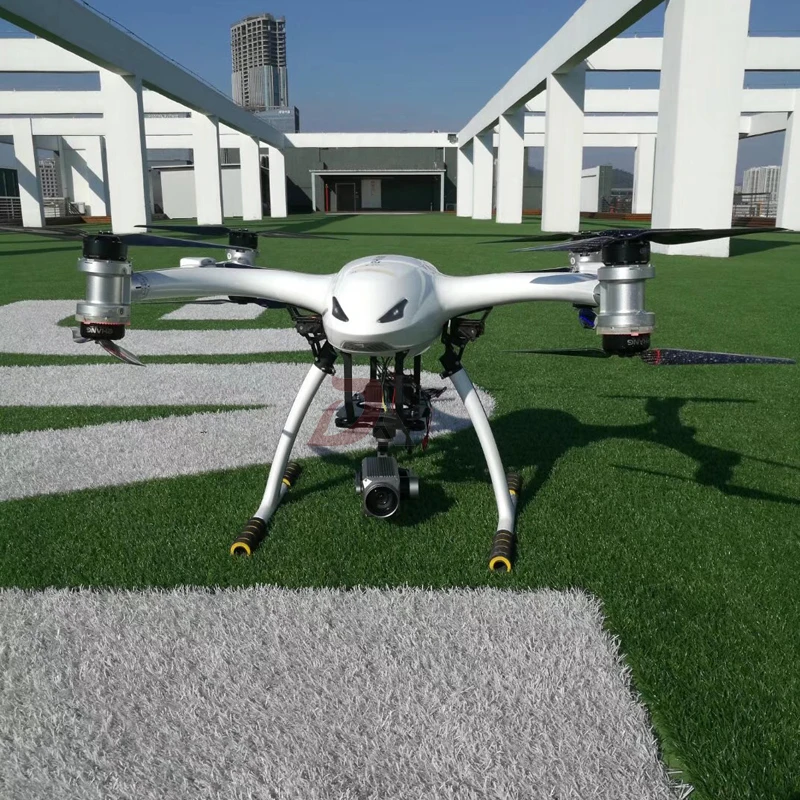

3 Axis Stabilized Gyro Gimbal HD Starlight Drone UAV 36x Zoom Camera
Compatible with most of industrial drones and DJI M600 models.
| 36x zoom Starlight Camera | |
| Imager sensor | 2.38 Mega 1/1.9″CMOS |
| Lens | 36x zoom 5.8 ~210 mm F1. 5~F 4.8 ±3% |
| Minimum object distance | 10mm(wide end) to 1200mm(tele end)(Default:300mm) |
| Minimum illumination | Colour 0.005Lux F1.5, Black-white 0.0005Lux F1.5 |
| S/N ratio | More than 55 dB |
| Backlight compensation | Yes |
| Gimbal Description | |
| Power Consumption | Quiescent 450mA@12V, Working 550mA@12V |
| Pitch angle range of action | -90°~+90° |
| Roll angle range of action | -85°~+85° |
| Yaw angle range of action | -170°~+170° |
| Angle jitter | pitch and roll direction±0.01° ,horizontal direction±0.01° |
| Size | L105.5*W188*H151.5mm |
| Weight | 945g |
Object Tracking Function
1. Function description
B u i l d -in normalization, cross-correlation and tracking algorithm,combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor,tracking information display.
2. Tracking Performance
1 ) U pdate rate of deviation pixel 50Hz
2) Output delay of deviation pixel <15ms
3) Minimum object contrast 5%
4) The minimal signal-to-noise ratio (SNR) 4
5) Minimum object size 16*16 pixel
6) Maximum object size 160*160 pixel
7) Tracking speed 32 pixel/frame
8) The mean square root values of pulse noise in the object position<0.5pixel
9) Object memory time 100 frames
Connection of control box and wiring instructions
Camera control line
Zoom: camera zoom control line,connect PWM receiver on third gear, or rocker.
Focus: camera manual focus control line, connect receiver on third gear, or rocker. If not connect, the camera will focus automatically after zooming.
Pic/Rec: photography/video, mode switching, video and photography control, connect receiver on third gear.
Switch from middle to high: photography/video mode switching
Switch from middle to low: (1)In the video mode:if video record is stop , video record starts ,if video record
is starting , switch from middle to low again, the video record will stop; (2)In the photo mode: take a pictures.
Multi: Multi control channel for other function, such as tracking, laser light. IR cut , etc
AV: analog output signal.
Pod PWM signal instructions:
YAW directional channel: speed mode ,connect rocker channel, (or third gear switch channel, stopping need third to middle position.)
PITCH Pitch channel: speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.)
MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch.
The speed of focusing
Design for UAV aerial photography , according to aerial
characteristics, using fast focus algorithm, focus time <1s.
More technical support. Please contact us!

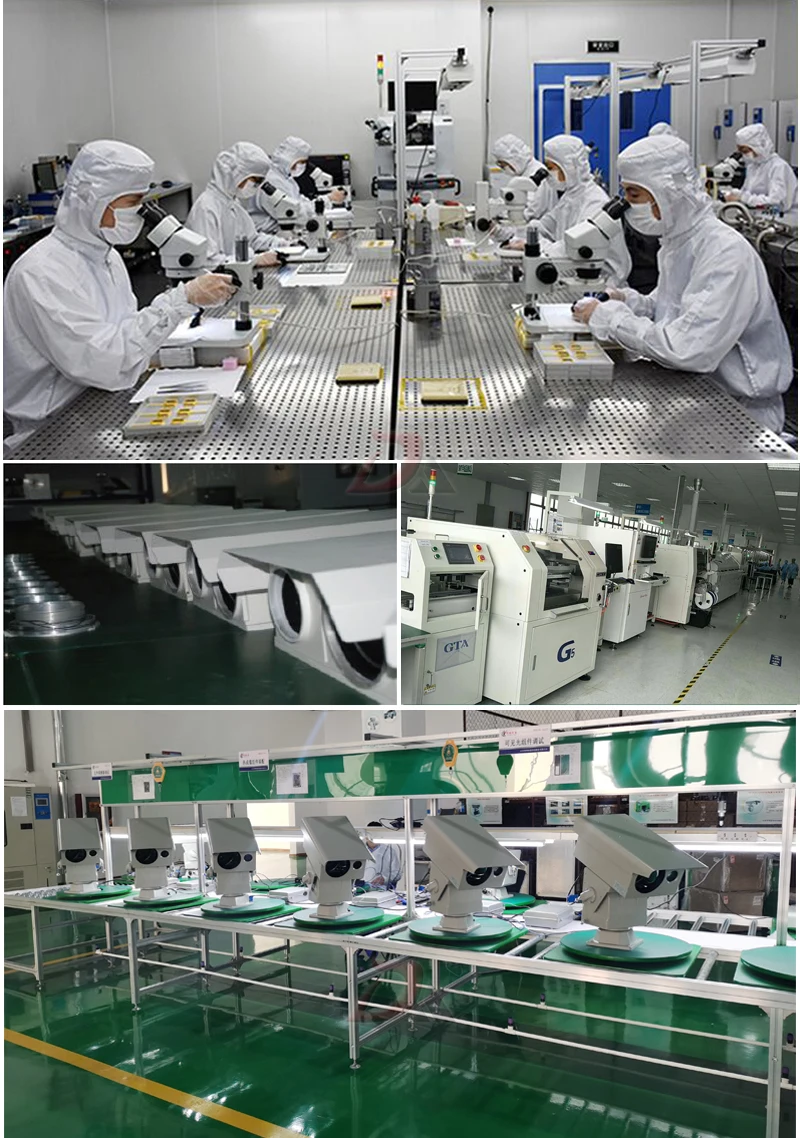

SHENZHEN DEEYA TECHNOLOGY CO., LTD. is a technical company with more than 10 years experience in R&D and production of thermal imaging cameras,Night vision surveillance system,UAV security equipment,Gimbal camera,Video intelligent identification system etc.
