Description
- Wheelbase: Bottom Plate
- Size: 2001003BK
- Model Number: 2001003BK
- For Vehicle Type: Airplanes
- Tool Supplies: Battery
- Four-wheel Drive Attributes: Battery
- Remote Control Peripherals/Devices: Battery
- Upgrade Parts/Accessories: Lithium Battery
- RC Parts & Accs: Batteries – LiPo
- Material: lipo
- Brand Name: CNHL
- Origin: Mainland China
- Recommend Age: 12+y,14+y,3-6y,6-12y
- Use: Vehicles & Remote Control Toys

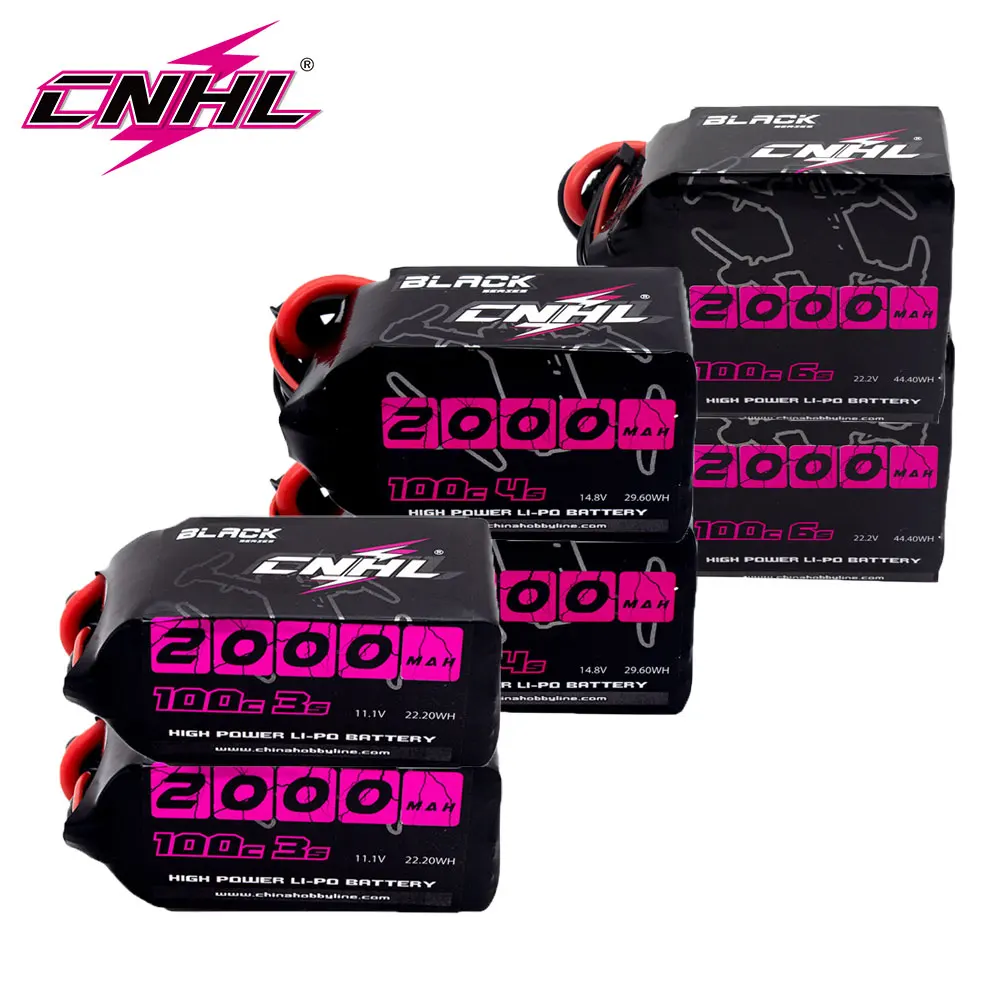

2PCS CNHL Lipo Battery 3S 4S 6S 2000mAh 11.1V 14.8V 22.2V 100C With XT60 Plug For RC Airplane Helicopter Quadcopter FPV Drone
Basic Parameter

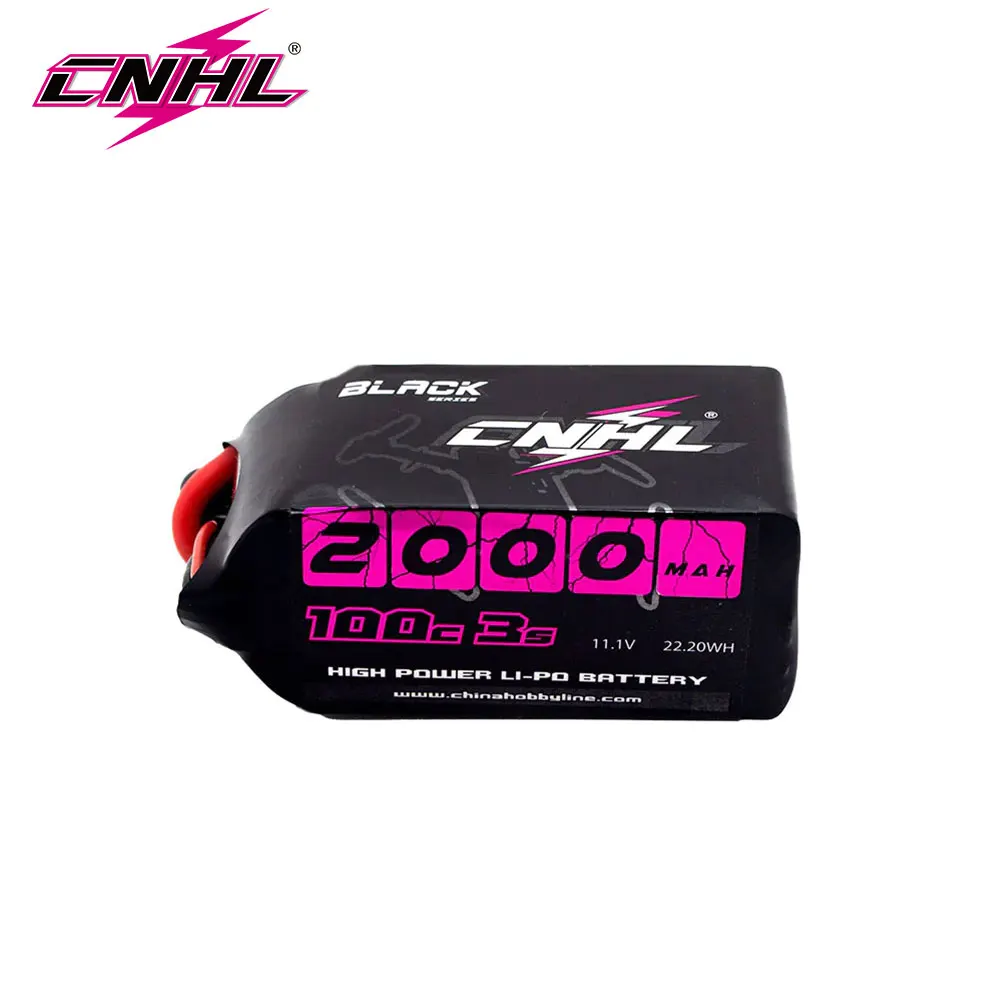

Model 1：2000mah 3S 11.1V 100C XT60-Plug
Stock Number：2001003BK
Capacity：2000mAh
Voltage：11.1V / 3-Cell / 3S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：38X36X76mm
Weight：178g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#

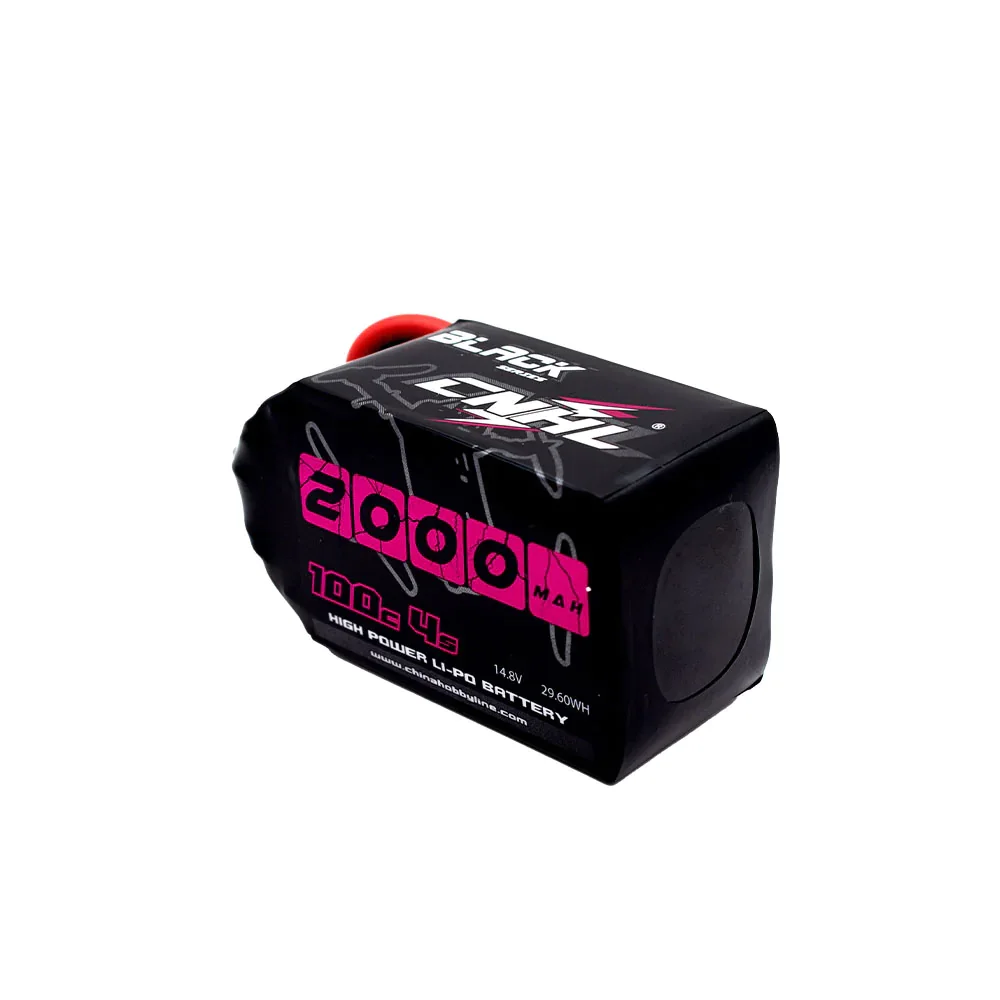

Model 2：2000mah 4S 14.8V 100C XT60-Plug
Stock Number：2001004BK
Capacity：2000mAh
Voltage：14.8V / 4-Cell / 4S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：47X38X76mm
Weight：234g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#

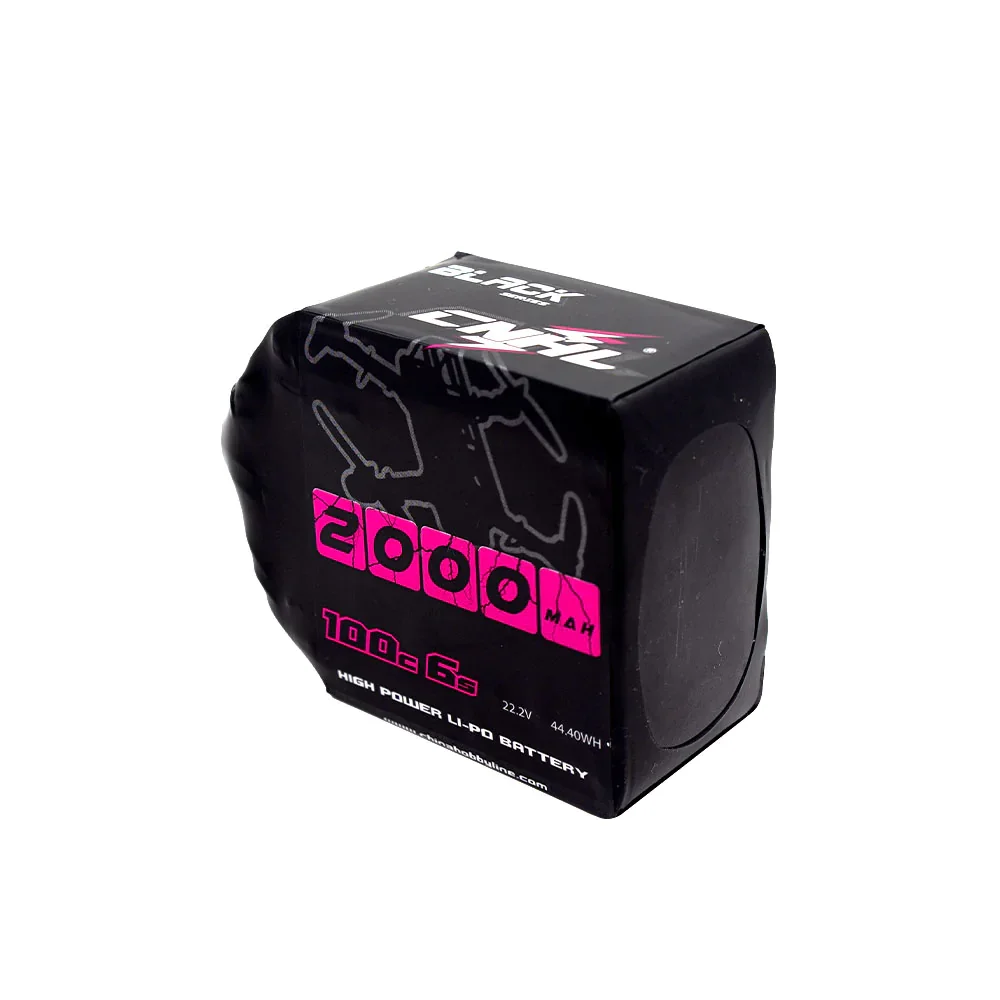

Model 3：2000mah 6S 22.2V 100C XT60-Plug
Stock Number：2001006BK
Capacity：2000mAh
Voltage：22.2V / 6-Cell / 6S1P
Discharge Rate：100C Continual / 200C Burst
Charge Rate：5C Max
Size：68X39X77mm
Weight：346g
Output Connector：XT60
Balance Connector：JST / XH
Remarks：N/A
Wire Size (AWG)：12#
Application Scenarios
RC requires high power and is lightweight to be faster.
CNHL RC airplane battery offers high energy density, great punch, and is lightweight, which is perfectly suited to RC airplane Model.
Such as AVIOS (PNF) BushMule,Volantex 759-3 Phoenix,H-King (PNF) MX2 Extreme,etc.
Notice: For the RC battery, only if the voltage and the plug match, then it will fit.
Note: due to the difference between the measurement, the battery dimension and weight may have little error.
Notice
1.Only if the voltage, dimension and the plug match, then it will fit.
2.Check the battery condition carefully before using or charging.
3.Don’t overcharge more than 4.2V and don’t over discharge below 3.2V, or your battery will be destroyed，never leave battery unattended when charging.
4.If the new battery won’t hold a full charge or loss the charge very quickly in short time, please use Balance Charger to charge and recycle several times first.
