Description
- Is Electric: lithium battery
- Wheelbase: Upper Shell
- Size: 85704G
- Technical parameters: Value 7
- Model Number: 85704G Combo 2
- For Vehicle Type: Airplanes
- Tool Supplies: Battery
- Four-wheel Drive Attributes: Battery
- Remote Control Peripherals/Devices: Battery
- Upgrade Parts/Accessories: Lithium Battery
- RC Parts & Accs: Batteries – LiPo
- Material: lipo
- Brand Name: CNHL
- Origin: Mainland China
- Recommend Age: 14+y,3-6y,6-12y
- Use: Vehicles & Remote Control Toys
2PCS CNHL 3S 4S 11.1V 14.8V Lipo Battery 650mAh 850mAh 70C MiniStar With XT30 XT60 Plug For RC FPV Drone Quadcopter Airplane
Specification:
Capacity: 650/850mAh
Voltage: 11.1V /3-Cell / 3S1P / 14.8V /4-Cell / 4S1P
Discharge Rate: 70C Continual / 140C Burst
Charge Rate: 5C Max
Output Connector: XT30/XT60
Balance Connector: JST / XH
Wire Size (AWG): 14#

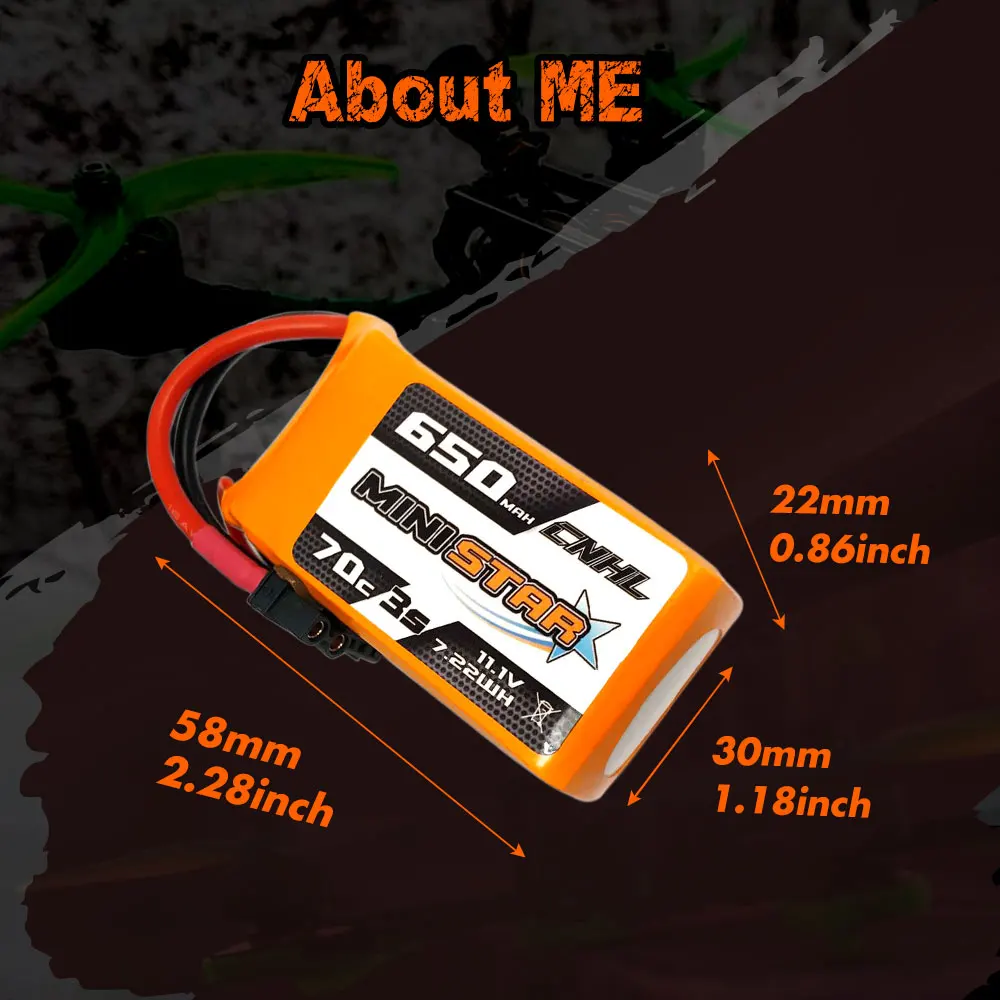

3S 650mah 70C XT30：22X30X58mm，70g，XT30 Plug

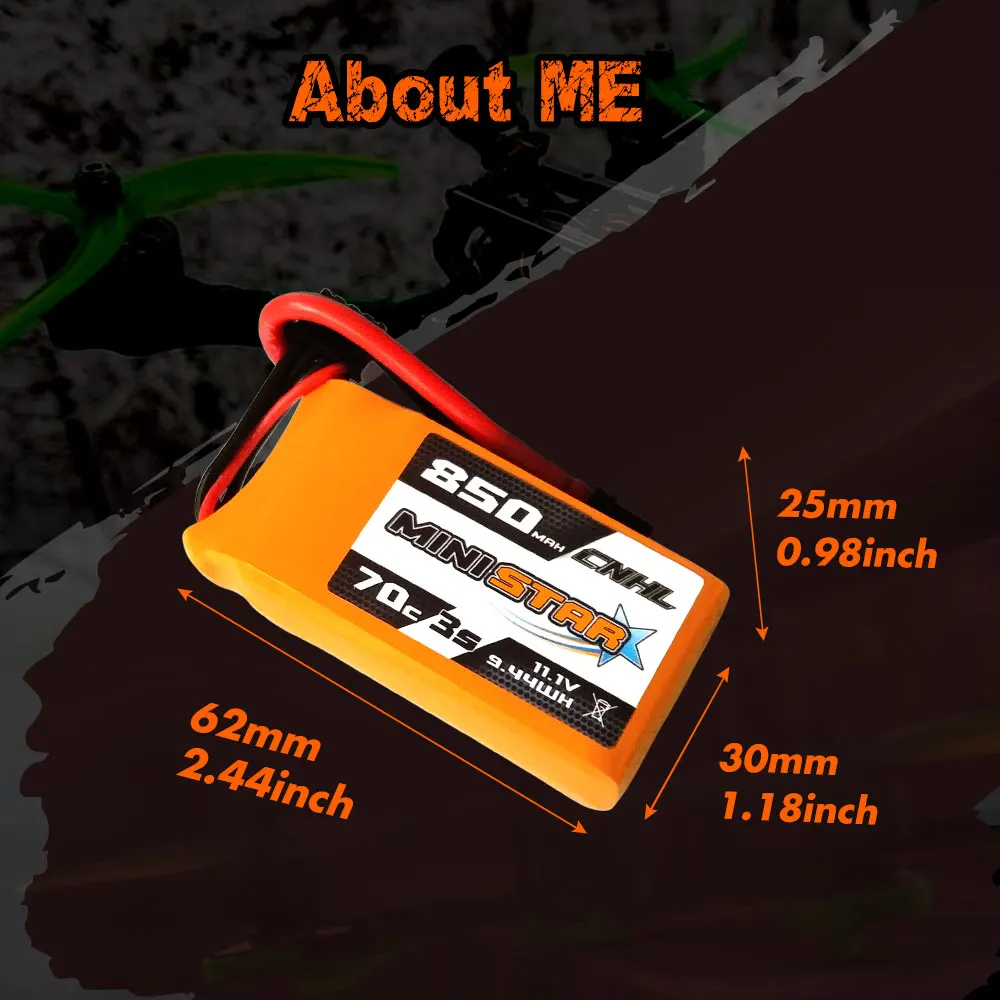

3S 850mah 70C XT30：25X30X62mm，80g，XT30 Plug

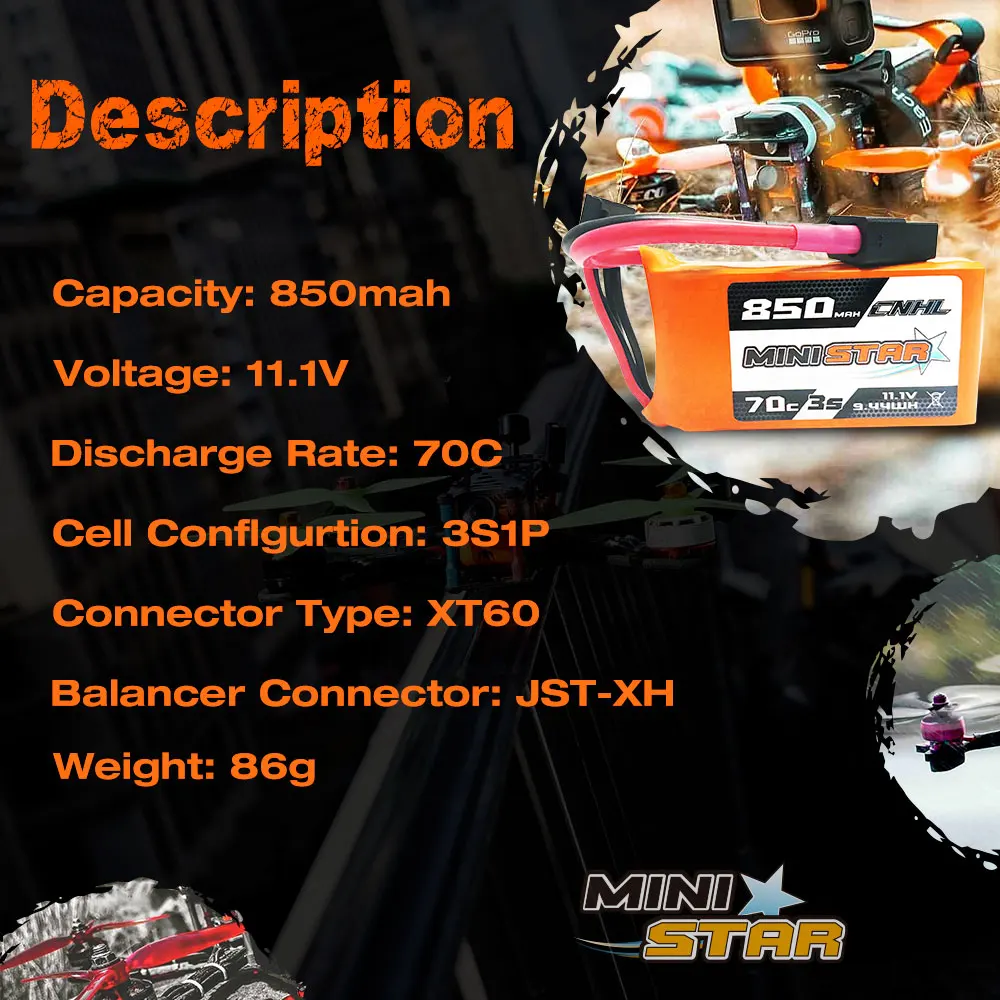

3S 850mah 70C XT60：25X30X62mm，86g，XT60 Plug
4S 650mah 70C XT30：27X30X58mm，87g，XT30 Plug
4S 850mah 70C XT30：33X30X62mm，110g，XT30 Plug
4S 850mah 70C XT60：33X30X62mm，110g，XT60 Plug
Note: due to the difference between the measurement, the battery dimension and weight may have little error.
Application:
650mah 3S 4S 70C XT30 XT60 and 850mAh 3s 4s 70C XT30 for 90mm to 150mm size quadcopters, such as 2-inch Toothpick drones, 3-inch Cinewhoops, etc.
Notice：
1.For the RC battery, only if the voltage and the plug match, then it will fit.
2.Please stop charging immediately when the cell voltage has been charged to 4.2V (Normal cell voltage is between 3.7V~4.2V).
3.To double make sure safe, please check first whether the battery surface is alright when you get it and whether the voltage is normal before using.
4.If the new battery won’t hold a full charge or loss the charge very quickly in a short time, please use the Balance Charger to charge and recycle several times first.
