2-6S LiPo LiFe Battery Balancer Voltage Meter Tester 3 in 1 LCD Display RC Battery Discharger Balancer Tools for Drones Model

2-6S LiPo LiFe Battery Balancer Voltage Meter Tester 3 in 1 LCD Display RC Battery Discharger Accessory For RC FPV Drones Model

【Product features】

1. Use of high-quality materials, durable
2. Exquisite and beautiful appearance
3. High precision large screen balance discharger, effectively solve the problem of unbalance after the use of lithium batteries
4. Can detect the voltage of each piece of the battery at any time, discharge protection function, and can play the function of balancing the voltage of each piece
5. Wide range of use

【Parameters】

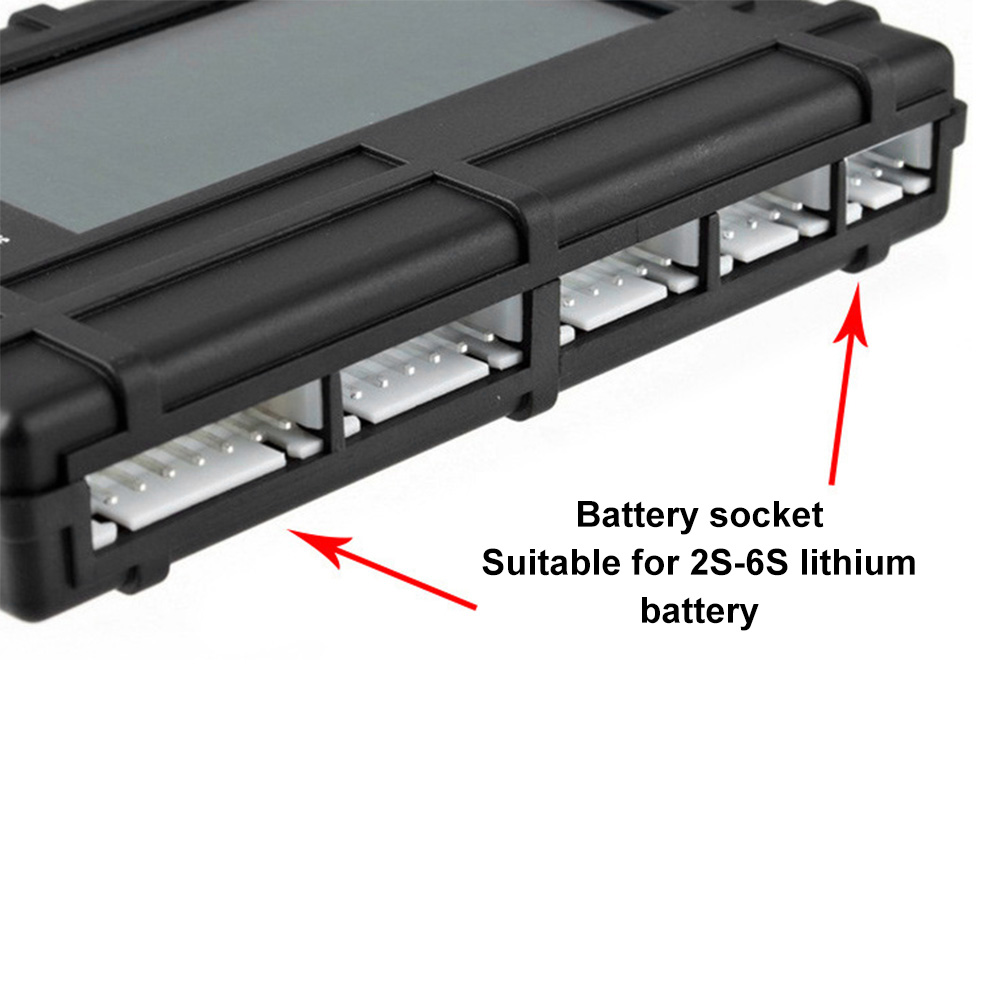

Support battery type: Li-Po/Li-Fe 2~6 cell
(nominal voltage 7.4V ~ 22.2V using voltage divider connector)
Receiver battery: 1.2V～8.5V DC
(Unlimited battery type, but external 7.4V to 11.1V is required, use JST connector)
Balance voltage setting range (lower limit): 2.0V～3.9V (default 3.3V)
Discharge voltage setting range (lower limit): 3.0V to 4.2V (default 3.9V)
Discharge current (4.0V/Cell): about 450mA

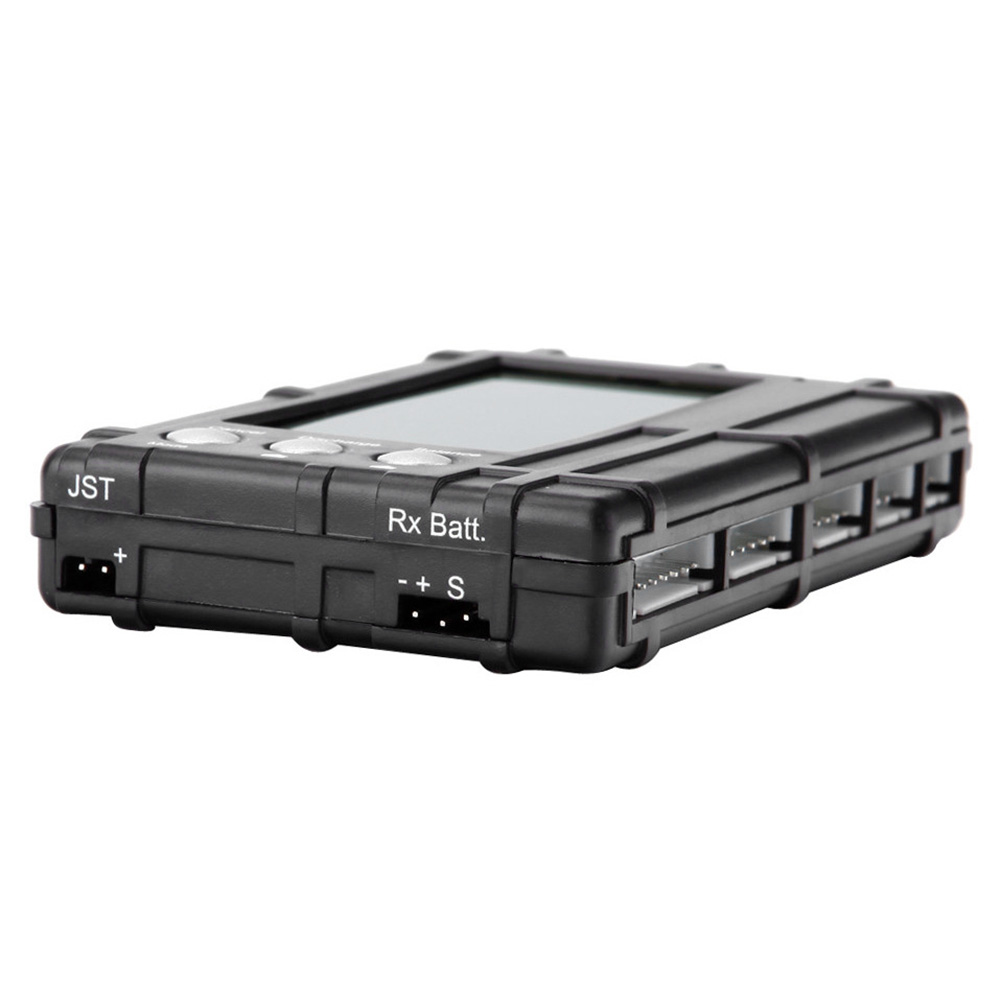

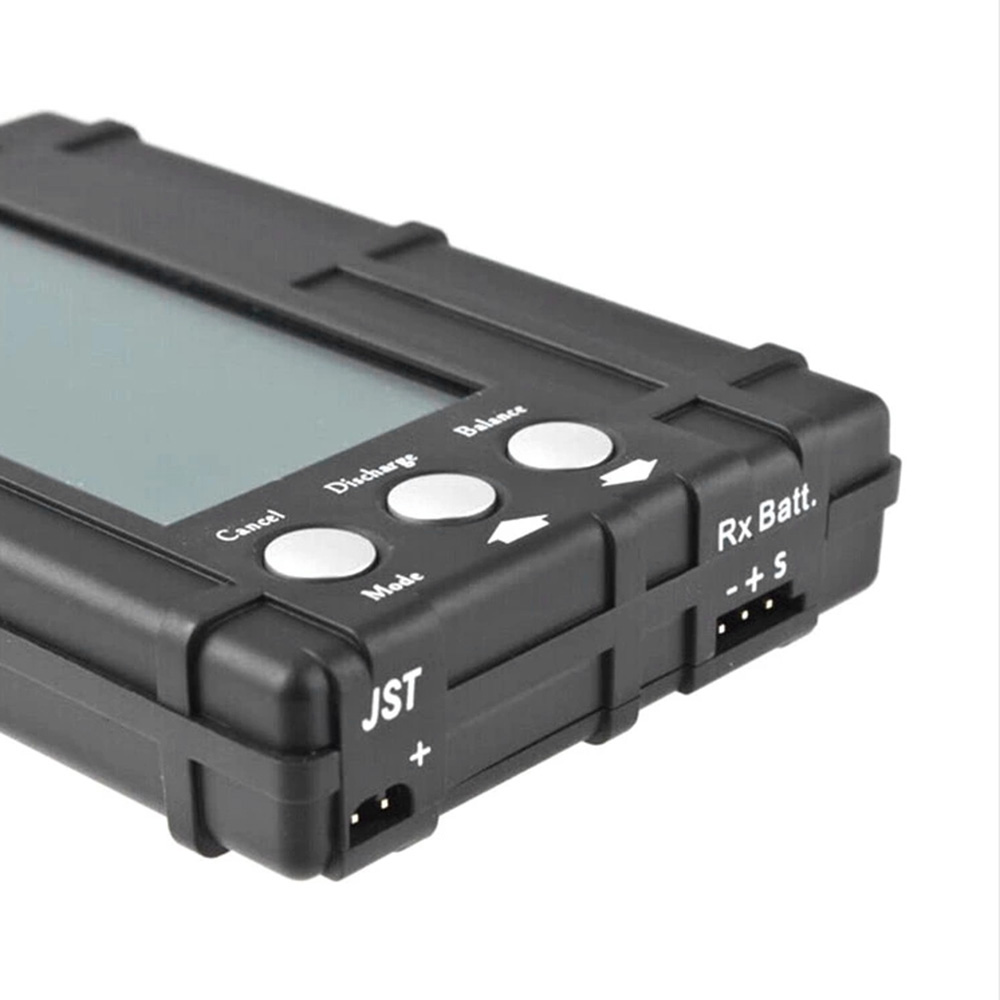

Support battery port: regular battery linear port Jst plug port Rx port

Strong note: You can't plug 2 batteries at the same time! Only one of the ports can be used at a time. Otherwise, it may cause the discharger to overload and burn out

【How to use the balancing function?】

Insert the balance head of the Li-ion battery pack into the corresponding jack, press Balance Jian, the bulb pattern will be displayed behind the battery, a small balance will appear in the screen, corresponding to the text Balance mode, that is, in the balance, after the balance is over, the bulb pattern will disappear, ending the balance. Press Cancel to exit the balance mode.

【How to set the voltage?】

Insert the balance head of the Li-ion battery pack into the corresponding jack, press Cancel, the screen will display Balance Voltage limit (individual cell voltage after balancing) and then press Discharge or Limit to adjust the value. After the adjustment, press the Cancel button again to exit.

【Package list】

Lithium battery balancer *1
